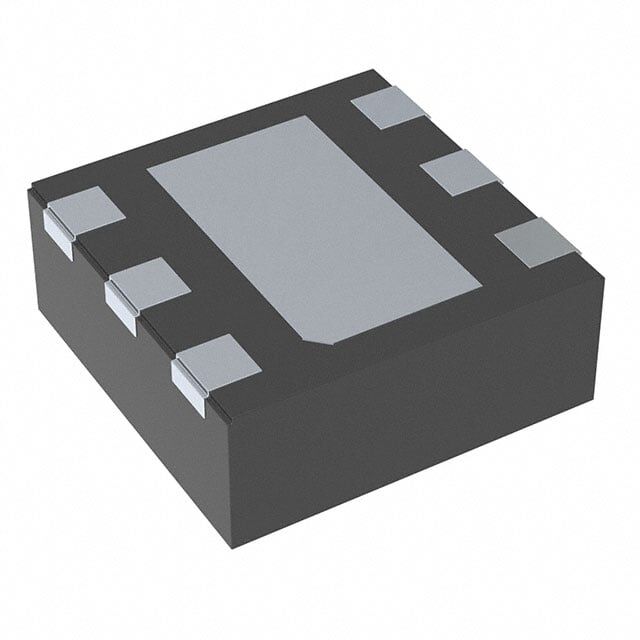

TPS74633PCQWDRVRQ1 3.3V 1A 6-WSON Entegre Devre
94,35 TL
9,87 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS74633PCQWDRVRQ1
Stok Adedi
0
Fiyat
1,75 USD + KDV
Texas Instruments TPS74633PCQWDRVRQ1, 6V maksimum girişe sahip 3.3V sabit çıkışlı 1A lineer regülatör entegresidir. Enable kontrol girişi bulunur ve 6-WSON (2x2) kılıfta, yüzey montaj için uygundur. Aşırı akım, aşırı sıcaklık ve UVLO korumaları ile -40°C ile 125°C çalışma aralığını destekler.
TPS74633PCQWDRVRQ1 IC REG LINEAR 3.3V 1A 6WSON
| Ürün Kodu | TPS74633PCQWDRVRQ1 |
| Control Features | Enable |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 36 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 6-WDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 53dB ~ 30dB (1kHz ~ 1MHz) |
| Supplier Device Package | 6-WSON (2x2) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.265V @ 1A |
TPS74633PCQWDRVRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
