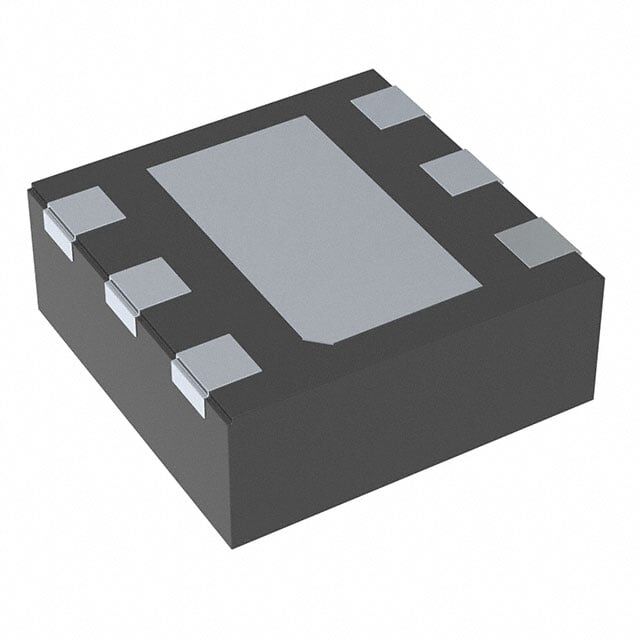

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
TPS74533PQWDRVRQ1 3.3V 500mA 6-WSON Entegre Devre
TPS74533PQWDRVRQ1
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS74533PQWDRVRQ1 3.3V 500mA 6-WSON Entegre Devre Hakkında
Texas Instruments TPS74533PQWDRVRQ1, 3.3V sabit çıkışlı 500mA lineer regülatör entegresidir. Enable ve Power Good özelliklerine sahiptir; aşırı akım, aşırı sıcaklık, kısa devre ve UVLO korumaları bulunur. 6V maksimum giriş gerilimi ile 6-WSON (2x2) SMD pakettedir ve -40°C ile 125°C aralığında çalışır.
TPS74533PQWDRVRQ1 IC REG LINEAR 3.3V 500MA 6WSON
| Ürün Kodu | TPS74533PQWDRVRQ1 |
| Control Features | Enable, Power Good |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 36 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 6-WDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| PSRR | 57dB ~ 35dB (1kHz ~ 1MHz) |
| Supplier Device Package | 6-WSON (2x2) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.095V @ 500mA |
TPS74533PQWDRVRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
