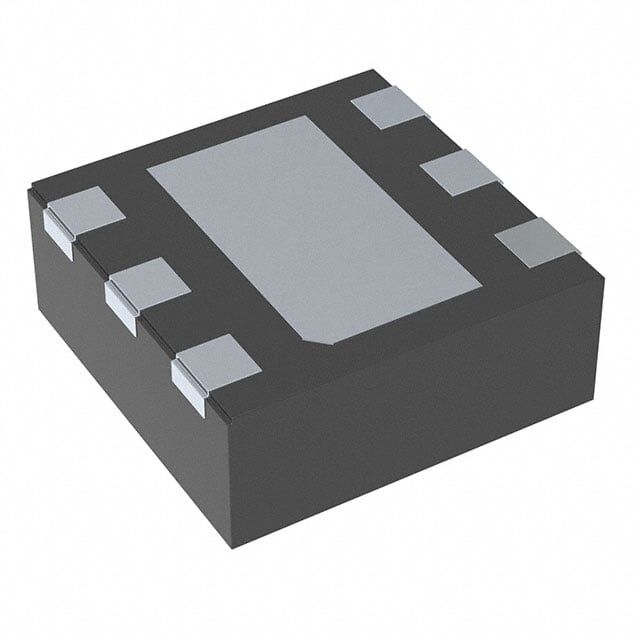

TPS74501PBQWDRVRQ1 Texas Instruments 6-WSON (2x2) Entegre Devre
110,86 TL
11,60 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS74501PBQWDRVRQ1
Stok Adedi
0
Fiyat
2,06 USD + KDV
TPS74501PBQWDRVRQ1, 6V maksimum girişe sahip, pozitif ayarlanabilir lineer regülatör entegresidir ve 500mA çıkış akımı sağlar. Enable ve Power Good özelliklerini destekler; aşırı akım, aşırı sıcaklık, kısa devre ve UVLO korumaları içerir. 6-WSON (2x2) SMD pakettedir ve -40°C ile 125°C aralığında çalışır.
TPS74501PBQWDRVRQ1 IC REG LIN POS ADJ 500MA 6WSON
| Ürün Kodu | TPS74501PBQWDRVRQ1 |
| Control Features | Enable, Power Good |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 36 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 6-WDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| PSRR | 57dB ~ 35dB (1kHz ~ 1MHz) |
| Supplier Device Package | 6-WSON (2x2) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.55V |
| Voltage Dropout (Max) | 0.72V @ 500mA |
TPS74501PBQWDRVRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
