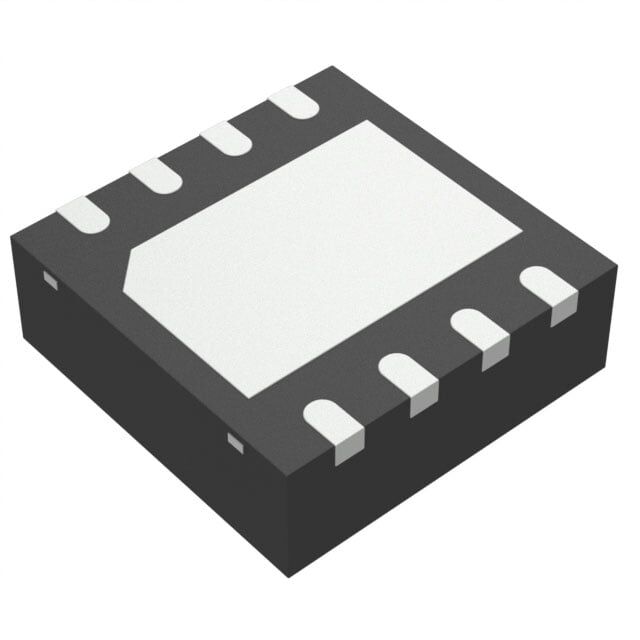

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
TPS73733QDRBRQ1 3.3V 1A 8-SON Entegre Devre
TPS73733QDRBRQ1
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS73733QDRBRQ1 3.3V 1A 8-SON Entegre Devre Hakkında
Texas Instruments TPS73733QDRBRQ1, 5.5V’a kadar girişten sabit 3.3V çıkış veren 1A lineer regülatör entegresidir. Enable kontrol girişine sahiptir ve aşırı akım, aşırı sıcaklık ile ters polarite korumaları bulunur. SMD 8-SON (3x3) / 8-VDFN exposed pad pakettedir ve -40°C ile 125°C aralığında çalışır.
TPS73733QDRBRQ1 IC REG LINEAR 3.3V 1A 8SON
| Ürün Kodu | TPS73733QDRBRQ1 |
| Control Features | Enable |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 400 µA |
| Current - Supply (Max) | 1.3 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 8-VDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Supplier Device Package | 8-SON (3x3) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.5V @ 1A |
TPS73733QDRBRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
