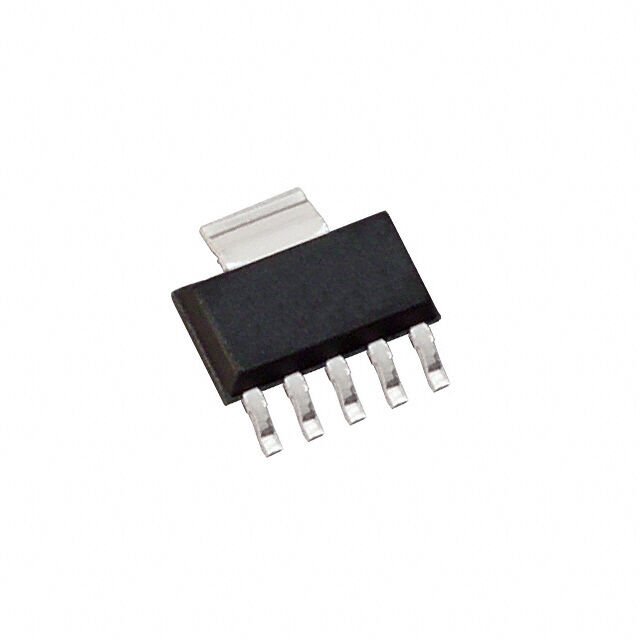

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
TPS73701DCQR Texas Instruments SOT-223-6 Entegre Devre
TPS73701DCQR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS73701DCQR Texas Instruments SOT-223-6 Entegre Devre Hakkında
TPS73701DCQR, Texas Instruments üretimi pozitif ayarlanabilir lineer regülatör entegresidir. 1A çıkış akımı sunar, 1.2V ile 5.5V aralığında ayarlanabilir ve maksimum 5.5V giriş gerilimi ile çalışır. Enable pini bulunur; aşırı akım, aşırı sıcaklık ve ters polarite korumalarına sahiptir.
TPS73701DCQR IC REG LINEAR POS ADJ 1A SOT223
| Ürün Kodu | TPS73701DCQR |
| Control Features | Enable |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 400 µA |
| Current - Supply (Max) | 1.3 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SOT-223-6 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Supplier Device Package | SOT-223-6 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage Dropout (Max) | 0.5V @ 1A |
TPS73701DCQR Datasheet dosyasına ulaşmak için tıklayınız.
