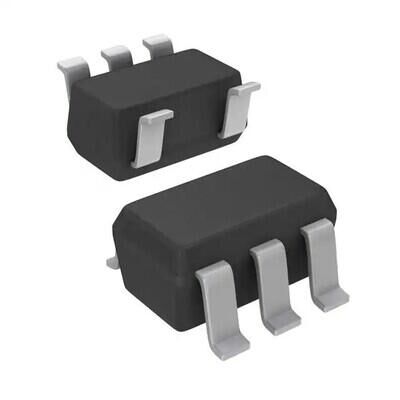

TPS73250DBVT Texas Instruments SOT-23-5 5V 250mA Entegre Devre
152,26 TL
15,93 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS73250DBVT
Stok Adedi
0
Fiyat
2,82 USD + KDV
TPS73250DBVT, Texas Instruments üretimi 5V sabit çıkışlı 250mA lineer regülatör entegresidir ve SOT-23-5 kılıftadır. Enable kontrol girişine sahiptir; aşırı akım, aşırı sıcaklık, kısa devre ve ters polarite korumaları bulunur. -40°C ile 125°C çalışma aralığında, 5.5V maksimum giriş gerilimi ile kullanılabilir.
TPS73250DBVT IC REG LINEAR 5V 250MA SOT23-5
| Ürün Kodu | TPS73250DBVT |
| Control Features | Enable |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 550 µA |
| Current - Supply (Max) | 950 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SC-74A, SOT-753 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit, Reverse Polarity |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.15V @ 250mA |
TPS73250DBVT Datasheet dosyasına ulaşmak için tıklayınız.
