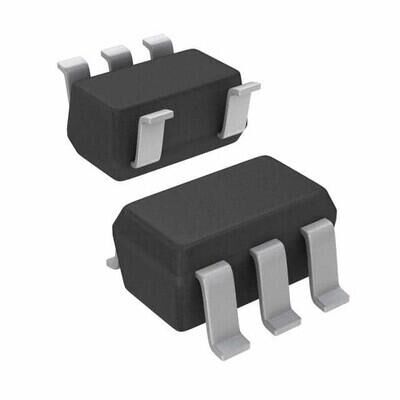

TPS73233DBVT Texas Instruments SOT-23-5 3.3V 250mA Entegre Devre
146,18 TL
15,29 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS73233DBVT
Stok Adedi
0
Fiyat
2,71 USD + KDV
TPS73233DBVT, Texas Instruments üretimi 3.3V sabit çıkışlı, 250mA lineer regülatör entegresidir. SOT-23-5 (SC-74A/SOT-753) SMD pakettedir ve enable kontrol girişine sahiptir. Aşırı akım, aşırı sıcaklık, kısa devre ve ters polarite korumaları bulunur.
TPS73233DBVT IC REG LINEAR 3.3V 250MA SOT23-5
| Ürün Kodu | TPS73233DBVT |
| Control Features | Enable |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 550 µA |
| Current - Supply (Max) | 950 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SC-74A, SOT-753 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit, Reverse Polarity |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.15V @ 250mA |
TPS73233DBVT Datasheet dosyasına ulaşmak için tıklayınız.
