TPS73130DBVT 3V 150mA SOT-23-5 LDO Entegre Devre
121,98 TL
12,76 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS73130DBVT
Stok Adedi
0
Fiyat
2,26 USD + KDV

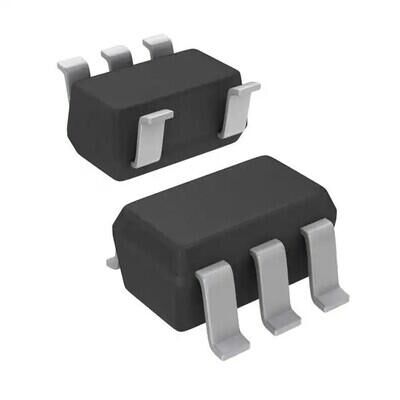

Texas Instruments TPS73130DBVT, 5.5V’a kadar girişten sabit 3V pozitif çıkış veren 150mA lineer LDO regülatördür. Enable pini bulunur ve SOT-23-5 (SOT-753/SC-74A) SMD kılıftadır. Aşırı akım, aşırı sıcaklık, kısa devre ve ters polarite korumaları içerir.
TPS73130DBVT IC REG LINEAR 3V 150MA SOT23-5
| Ürün Kodu | TPS73130DBVT |
| Control Features | Enable |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 550 µA |
| Current - Supply (Max) | 750 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SC-74A, SOT-753 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit, Reverse Polarity |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage Dropout (Max) | 0.1V @ 150mA |
TPS73130DBVT Datasheet dosyasına ulaşmak için tıklayınız.
