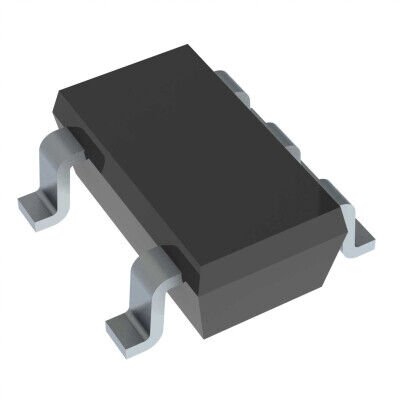

TPS73118MDBVREP 1.8V 150mA SOT-23-5 Entegre Devre
315,94 TL
33,05 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS73118MDBVREP
Stok Adedi
0
Fiyat
5,86 USD + KDV
Texas Instruments TPS73118MDBVREP, 1.8V sabit çıkışlı 150mA lineer regülatör entegresidir. Enable pini bulunur, 5.5V’a kadar giriş gerilimi destekler ve SOT-23-5 (SOT-753) pakettedir. Aşırı akım, aşırı sıcaklık, kısa devre ve ters polarite korumalarına sahiptir.
TPS73118MDBVREP IC REG LINEAR 1.8V 150MA SOT23-5
| Ürün Kodu | TPS73118MDBVREP |
| Control Features | Enable |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 550 µA |
| Current - Supply (Max) | 750 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -55°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SC-74A, SOT-753 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit, Reverse Polarity |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage Dropout (Max) | 0.1V @ 150mA |
TPS73118MDBVREP Datasheet dosyasına ulaşmak için tıklayınız.
