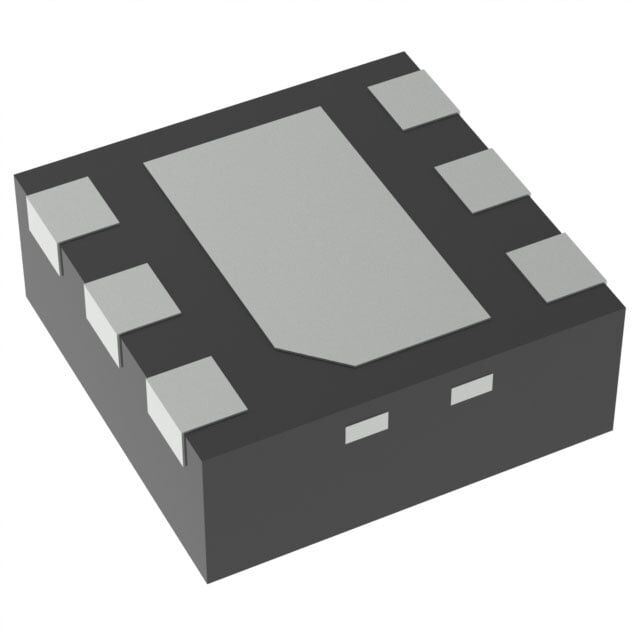

TPS715A01DRVR Texas Instruments 6-WSON (2x2) Entegre Devre
108,28 TL
11,33 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS715A01DRVR
Stok Adedi
0
Fiyat
2,01 USD + KDV
TPS715A01DRVR, Texas Instruments üretimi ayarlanabilir pozitif lineer regülatör entegresidir. 24V girişe kadar çalışır, 1.2V–15V aralığında ayarlanabilir çıkış sunar ve 80mA çıkış akımı sağlar. 6-WSON (2x2) SMD pakettedir; aşırı akım ve ters polarite koruması içerir.
TPS715A01DRVR IC REG LINEAR POS ADJ 80MA 6WSON
| Ürün Kodu | TPS715A01DRVR |
| Control Features | - |
| Current - Output | 80mA |
| Current - Quiescent (Iq) | 4.2 µA |
| Current - Supply (Max) | 5.8 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 6-WDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Reverse Polarity |
| PSRR | 60dB (100kHz) |
| Supplier Device Package | 6-WSON (2x2) |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage Dropout (Max) | 1.12V @ 80mA |
TPS715A01DRVR Datasheet dosyasına ulaşmak için tıklayınız.
