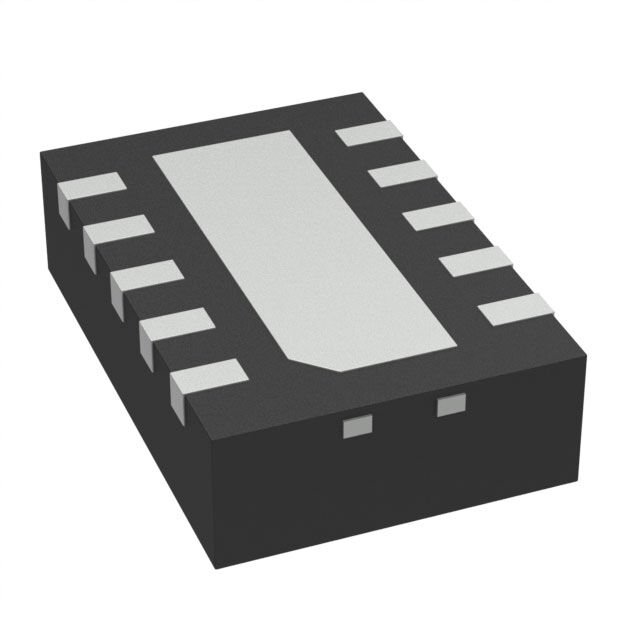

TPS22990DMLR Texas Instruments 10-WSON (3x2) Entegre Devre
70,90 TL
7,42 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS22990DMLR
Stok Adedi
0
Fiyat
1,31 USD + KDV
TPS22990DMLR, 2.5V-5.5V aralığında çalışan, 10A’e kadar yüksek taraf (high-side) N-kanal güç anahtarı entegresidir. 10-WSON (3x2) paketinde sunulur; tipik 3.9 mOhm Rds(on) değerine sahiptir. Load discharge, power good ve slew rate kontrollü anahtarlama özelliklerini destekler.
TPS22990DMLR IC PWR SWITCH N-CHAN 1:1 10WSON
| Ürün Kodu | TPS22990DMLR |
| Current - Output (Max) | 10A |
| Fault Protection | - |
| Features | Load Discharge, Power Good, Slew Rate Controlled |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 10-WFDFN Exposed Pad |
| Part Status | Active |
| Ratio - Input:Output | 1:1 |
| Rds On (Typ) | 3.9mOhm |
| Supplier Device Package | 10-WSON (3x2) |
| Switch Type | General Purpose |
| Voltage - Load | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
TPS22990DMLR Datasheet dosyasına ulaşmak için tıklayınız.
