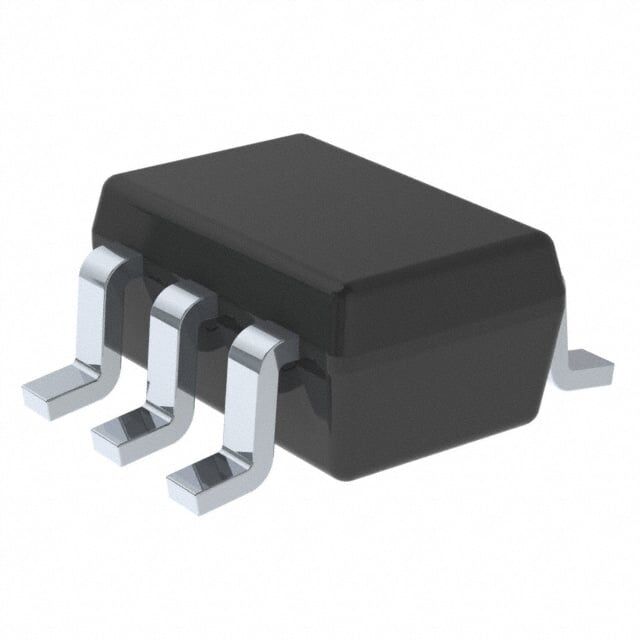

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
TPS22919DCKR Texas Instruments SC-70-6 Entegre Devre
TPS22919DCKR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS22919DCKR Texas Instruments SC-70-6 Entegre Devre Hakkında
TPS22919DCKR, Texas Instruments üretimi 1 çıkışlı yüksek taraf (high-side) güç anahtarı entegresidir. 1.6V–5.5V yük gerilimi aralığında 1.5A’e kadar akım sağlar, tipik 89mOhm Rds(on) değerine sahiptir. Kısa devre koruması, yük boşaltma ve slew rate kontrollü açma/kapama özellikleri bulunur.
TPS22919DCKR POWER MANAGEMENT
| Ürün Kodu | TPS22919DCKR |
| Current - Output (Max) | 1.5A |
| Fault Protection | Short Circuit |
| Features | Load Discharge, Slew Rate Controlled |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Part Status | Active |
| Ratio - Input:Output | 1:1 |
| Rds On (Typ) | 89mOhm |
| Supplier Device Package | SC-70-6 |
| Switch Type | General Purpose |
| Voltage - Load | 1.6V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
TPS22919DCKR Datasheet dosyasına ulaşmak için tıklayınız.
