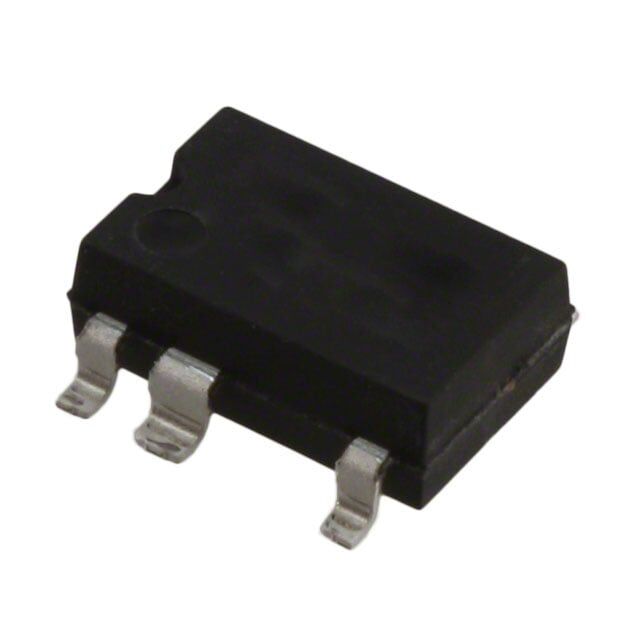

TOP252GN-TL Power Integrations SMD-8C Flyback Entegre Devre
89,69 TL
9,38 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TOP252GN-TL
Stok Adedi
0
Fiyat
1,66 USD + KDV
TOP252GN-TL, Power Integrations üretimi flyback topolojisi için offline switch entegresidir. 700V breakdown gerilimi, 66kHz anahtarlama frekansı ve 15W güç kapasitesi ile yüzey montaj SMD-8C (8-SMD, 7 bacak) pakettedir. Akım sınırlama, aşırı sıcaklık ve aşırı gerilim korumaları içerir.
TOP252GN-TL IC OFFLINE SWITCH FLYBACK 8SMD
| Ürün Kodu | TOP252GN-TL |
| Control Features | - |
| Duty Cycle | 78% |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Isolation | Isolated |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Part Status | Active |
| Power (Watts) | 15 W |
| Supplier Device Package | SMD-8C |
| Topology | Flyback |
| Voltage - Breakdown | 700V |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
TOP252GN-TL Datasheet dosyasına ulaşmak için tıklayınız.
