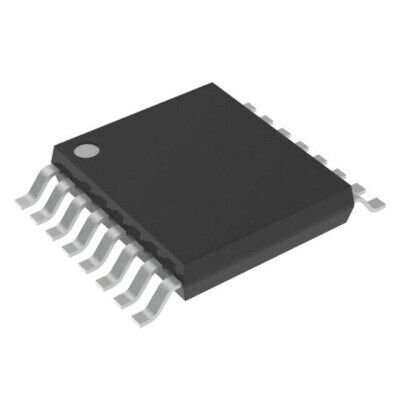

TMUX4053PWR 16-TSSOP Analog Switch Entegre Devre
42,06 TL
4,40 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TMUX4053PWR
Stok Adedi
0
Fiyat
0,78 USD + KDV
Texas Instruments TMUX4053PWR, 16-TSSOP kılıfta 3 devreli 2:1 analog anahtar/multiplexer entegresidir. 5V-24V tek besleme ile çalışır, maksimum 240 Ohm iletim direncine ve 850MHz -3dB bant genişliğine sahiptir. -55°C ile 125°C çalışma sıcaklık aralığını destekler.
TMUX4053PWR 16-TSSOP (0.173", 4.40mm Width) kılıfta üretilmiştir. 3 Circuit IC Switch 2:1 240Ohm 16-TSSOP
| Ürün Kodu | TMUX4053PWR |
| Packaging | Cut Tape (CT) |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 240Ohm |
| -3db Bandwidth | 850MHz |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 5V ~ 24V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -90dB @ 1MHz |
| Switch Circuit | SPDT - NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 2Ohm (Typ) |
| Switch Time (Ton, Toff) (Max) | 110ns, 85ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 3pF |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 3 |
TMUX4053PWR Datasheet dosyasına ulaşmak için tıklayınız.
