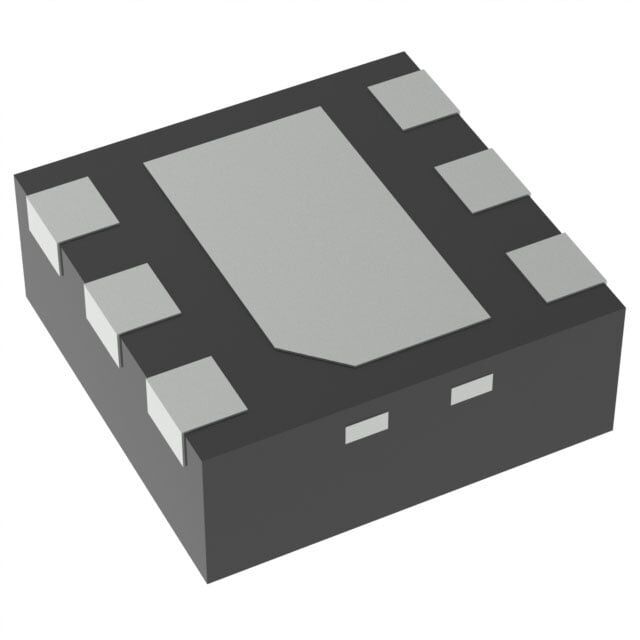

TLV75901PDRVR 1A Ayarlanabilir LDO 6-WSON (2x2) Entegre Devre
39,57 TL
4,14 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLV75901PDRVR
Stok Adedi
0
Fiyat
0,73 USD + KDV
Texas Instruments TLV75901PDRVR, pozitif ayarlanabilir çıkışlı 1A lineer LDO regülatördür. 0.55V ile 5.5V aralığında çıkış sağlar, maksimum giriş gerilimi 6V’tur ve Enable kontrol pinine sahiptir. 6-WSON (2x2) kılıfta sunulur; aşırı akım, aşırı sıcaklık ve UVLO korumaları bulunur.
TLV75901PDRVR IC REG LINEAR POS ADJ 1A 6WSON
| Ürün Kodu | TLV75901PDRVR |
| Control Features | Enable |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 35 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 6-WDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 50dB ~ 30dB (1kHz ~ 1MHz) |
| Supplier Device Package | 6-WSON (2x2) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.55V |
| Voltage Dropout (Max) | 1.05V @ 1A |
TLV75901PDRVR Datasheet dosyasına ulaşmak için tıklayınız.
