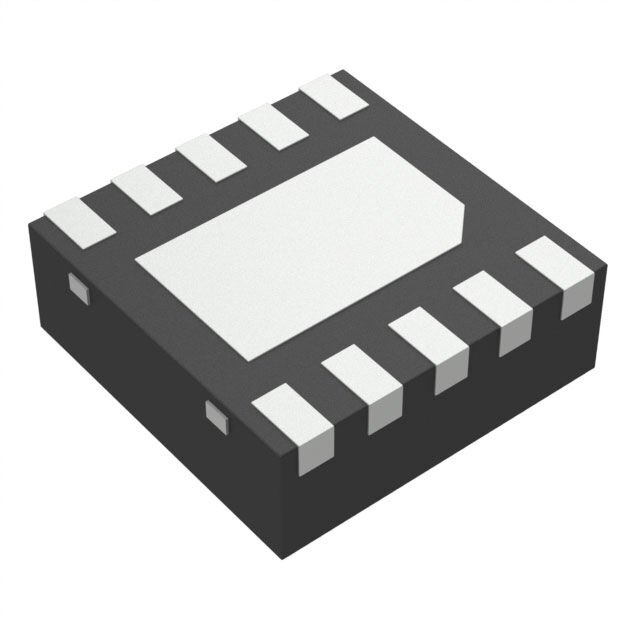

TLV751330500PDSQR 3.3V/5V 500mA 10-WSON Entegre Devre
37,17 TL
3,89 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLV751330500PDSQR
Stok Adedi
0
Fiyat
0,69 USD + KDV
Texas Instruments TLV751330500PDSQR, 3.3V ve 5V sabit çıkışlı, iki kanallı lineer regülatör entegresidir. Her bir çıkış 500mA akım sağlayabilir, enable kontrolü ve UVLO/aşırı akım/aşırı sıcaklık korumaları içerir. 10-WSON (2x2) SMD pakettedir ve -40°C ile 125°C çalışma aralığını destekler.
TLV751330500PDSQR IC REG LIN 3.3V/5V 500MA 10WSON
| Ürün Kodu | TLV751330500PDSQR |
| Control Features | Enable |
| Current - Output | 500mA, 500mA |
| Current - Quiescent (Iq) | 35 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 2 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 10-WFDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 50dB ~ 30dB (1kHz ~ 1MHz) |
| Supplier Device Package | 10-WSON (2x2) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V, 5V |
| Voltage Dropout (Max) | 0.13V @ 500mA, 0.13V @ 500mA |
TLV751330500PDSQR Datasheet dosyasına ulaşmak için tıklayınız.
