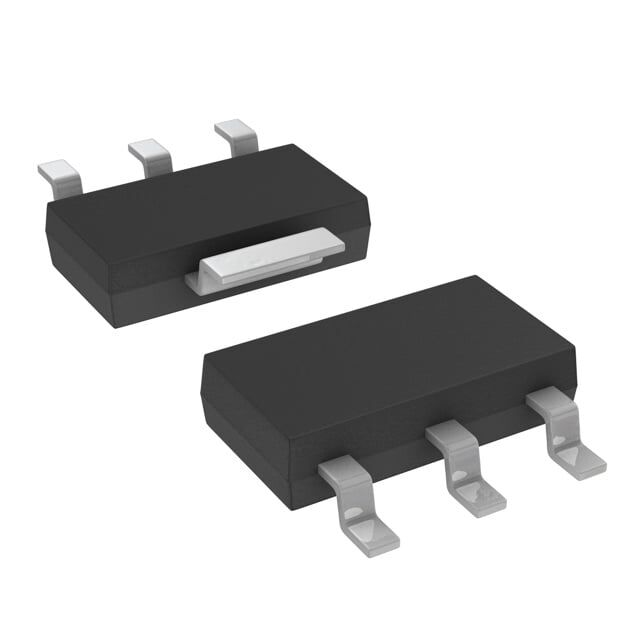

TLV1117LV33DCYT 3.3V 1A SOT-223-4 Entegre Devre
89,65 TL
9,38 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLV1117LV33DCYT
Stok Adedi
0
Fiyat
1,66 USD + KDV
Texas Instruments TLV1117LV33DCYT, 5.5V’a kadar girişten sabit 3.3V pozitif çıkış veren 1A lineer regülatördür. SOT-223-4 (TO-261-4) SMD pakettedir, tipik 100 µA boşta akım ve 1.3V @ 800mA maksimum dropout değerine sahiptir. Aşırı akım ve aşırı sıcaklık koruması bulunur, çalışma sıcaklığı -40°C ile 125°C arasındadır.
TLV1117LV33DCYT IC REG LINEAR 3.3V 1A SOT223-4
| Ürün Kodu | TLV1117LV33DCYT |
| Control Features | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-261-4, TO-261AA |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 75dB (120Hz) |
| Supplier Device Package | SOT-223-4 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 1.3V @ 800mA |
TLV1117LV33DCYT Datasheet dosyasına ulaşmak için tıklayınız.
