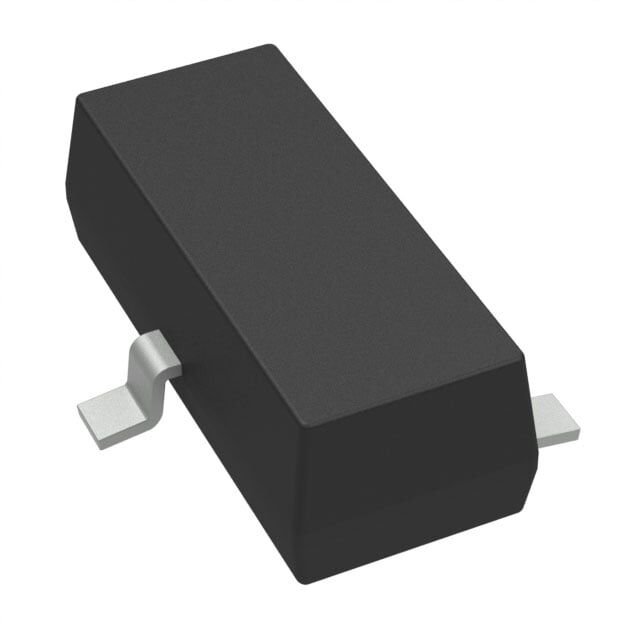

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
TL431CDBZR Texas Instruments SOT-23-3 Entegre Devre
TL431CDBZR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TL431CDBZR Texas Instruments SOT-23-3 Entegre Devre Hakkında
TL431CDBZR, Texas Instruments üretimi ayarlanabilir shunt referans entegresidir. 2.495 V referans değeri, ±2.2% tolerans ve 36 V maksimum çıkış gerilimi sunar. SOT-23-3 (TO-236-3/SC-59) kılıfta, yüzey montaj uygulamaları için uygundur.
TL431CDBZR IC VREF SHUNT ADJ 2.2% SOT23-3
| Ürün Kodu | TL431CDBZR |
| Current - Cathode | 1 mA |
| Current - Output | 100 mA |
| Current - Supply | - |
| Mounting Type | Surface Mount |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Type | Adjustable |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Part Status | Active |
| Reference Type | Shunt |
| Supplier Device Package | SOT-23-3 |
| Temperature Coefficient | - |
| Tolerance | ±2.2% |
| Voltage - Input | - |
| Voltage - Output (Max) | 36 V |
| Voltage - Output (Min/Fixed) | 2.495V |
TL431CDBZR Datasheet dosyasına ulaşmak için tıklayınız.
