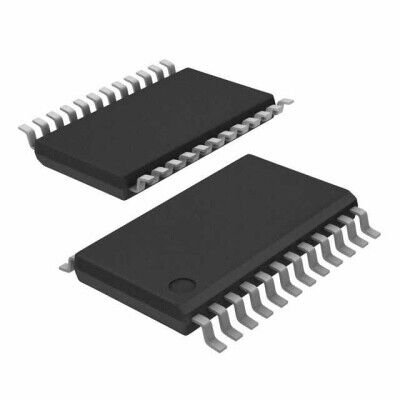

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
Texas Instruments UCC28950PWR 24-TSSOP Entegre Devre
UCC28950PWR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments UCC28950PWR 24-TSSOP Entegre Devre Hakkında
Texas Instruments UCC28950PWR, full-bridge topolojisi için PWM regülatör kontrol entegresidir. 8V-17V besleme aralığında çalışır ve 50kHz-1MHz anahtarlama frekansını destekler. Soft start, frekans kontrolü, dead time kontrolü, enable ve clock senkronizasyon özellikleri bulunur.
UCC28950PWR IC REG CTRLR FULL-BRIDGE 24TSSOP
| Ürün Kodu | UCC28950PWR |
| Clock Sync | Yes |
| Control Features | Dead Time Control, Enable, Frequency Control, Soft Start |
| Duty Cycle (Max) | 95% |
| Frequency - Switching | 50kHz ~ 1MHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Part Status | Active |
| Serial Interfaces | - |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | Yes |
| Topology | Full-Bridge |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 17V |
UCC28950PWR Datasheet dosyasına ulaşmak için tıklayınız.
