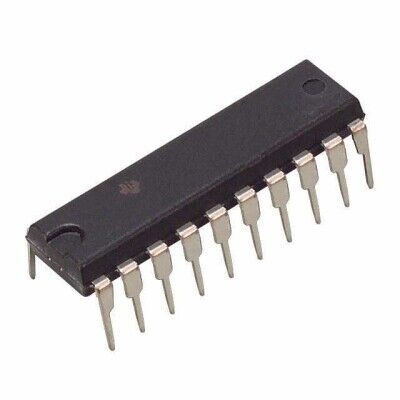

Texas Instruments UC3879N 20-PDIP Half-Bridge Kontrol Entegre Devre
1.288,98 TL
134,85 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
UC3879N
Stok Adedi
0
Fiyat
23,90 USD + KDV
Texas Instruments UC3879N, half-bridge topolojisi için step-up/step-down regülatör kontrol entegresidir. Through-hole 20-PDIP (20DIP) pakette, 9V-20V besleme aralığında çalışır ve 300kHz'e kadar anahtarlama frekansını destekler. Frekans kontrolü, ramp ve soft-start özellikleri ile clock sync ve senkron doğrultma desteği bulunur.
UC3879N IC REG CTRLR HALF-BRIDGE 20DIP
| Ürün Kodu | UC3879N |
| Clock Sync | Yes |
| Control Features | Frequency Control, Ramp, Soft Start |
| Duty Cycle (Max) | 50% |
| Frequency - Switching | Up to 300kHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Through Hole |
| Number of Outputs | 4 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Part Status | Active |
| Serial Interfaces | - |
| Supplier Device Package | 20-PDIP |
| Synchronous Rectifier | Yes |
| Topology | Half-Bridge |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 20V |
UC3879N Datasheet dosyasına ulaşmak için tıklayınız.
