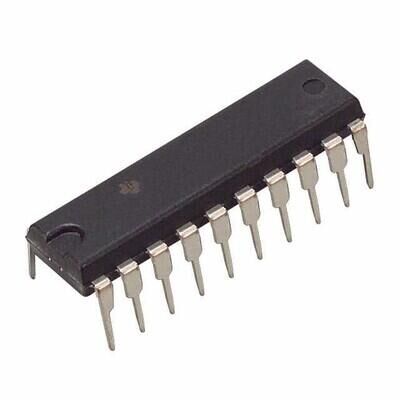

Texas Instruments UC2875N 20-PDIP Entegre Devre
1.785,60 TL
186,80 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
UC2875N
Stok Adedi
0
Fiyat
33,11 USD + KDV
UC2875N, tam köprü (full-bridge) topolojisi için offline anahtarlama kontrol entegresidir. 9.5V–20V besleme aralığında çalışır, 10.75V başlangıç gerilimine sahiptir ve 1MHz anahtarlama frekansını destekler. Frekans kontrolü, soft start, senkronizasyon ve akım sınırlama koruması özellikleri bulunur; through-hole 20-PDIP kılıftadır.
UC2875N IC OFFLINE SW FULL-BRDG 20DIP
| Ürün Kodu | UC2875N |
| Control Features | Frequency Control, Soft Start, Sync |
| Duty Cycle | 100% |
| Fault Protection | Current Limiting |
| Frequency - Switching | 1MHz |
| Internal Switch(s) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Output Isolation | Non-Isolated |
| Part Status | Active |
| Power (Watts) | - |
| Supplier Device Package | 20-PDIP |
| Topology | Full-Bridge |
| Voltage - Breakdown | - |
| Voltage - Start Up | 10.75 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
UC2875N Datasheet dosyasına ulaşmak için tıklayınız.
