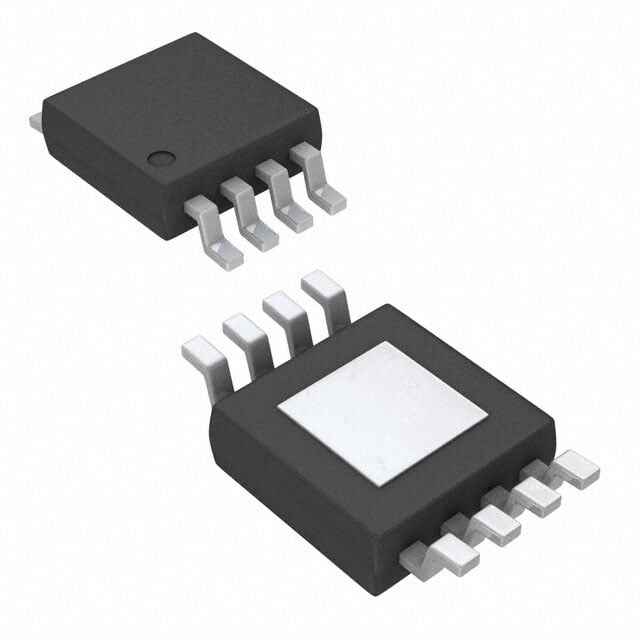

Texas Instruments TPS7B8250QDGNRQ1 8-MSOP LDO Regülatör Entegre Devre
145,44 TL
15,22 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS7B8250QDGNRQ1
Stok Adedi
0
Fiyat
2,70 USD + KDV
TPS7B8250QDGNRQ1, 3.3V veya 5V sabit çıkışlı, 300mA pozitif lineer (LDO) regülatör entegresidir. 40V maksimum giriş gerilimi, enable pini ve aşırı akım/aşırı sıcaklık/kısa devre korumaları bulunur. 8-HVSSOP (8-MSOP) SMD pakettedir ve -40°C ile 150°C aralığında çalışır.
TPS7B8250QDGNRQ1 IC REG LIN 3.3V/5V 300MA 8MSOP
| Ürün Kodu | TPS7B8250QDGNRQ1 |
| Control Features | Enable |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 5 µA |
| Current - Supply (Max) | 5 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| PSRR | 60dB (100kHz) |
| Supplier Device Package | 8-HVSSOP |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V, 5V |
| Voltage Dropout (Max) | 0.7V @ 200mA |
TPS7B8250QDGNRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
