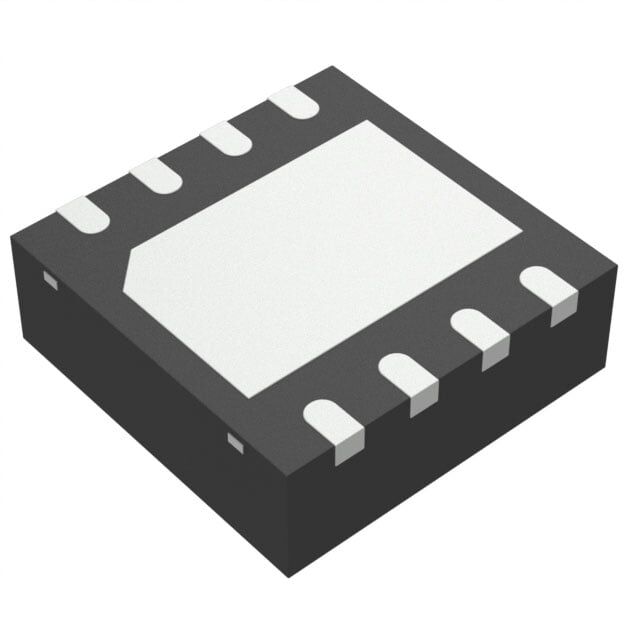

Texas Instruments TPS73533DRBR 3.3V 500mA 8-SON Entegre Devre
155,87 TL
16,31 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS73533DRBR
Stok Adedi
0
Fiyat
2,89 USD + KDV
TPS73533DRBR, 6.5V maksimum girişten 3.3V sabit çıkış veren 500mA LDO lineer regülatördür. Enable pini bulunur ve 65 µA tipik boşta akım (Iq) değerine sahiptir. 8-SON (3x3) SMD pakette; aşırı akım, aşırı sıcaklık, ters polarite ve UVLO korumaları içerir.
TPS73533DRBR IC REG LINEAR 3.3V 500MA 8SON
| Ürün Kodu | TPS73533DRBR |
| Control Features | Enable |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 65 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 8-VDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| PSRR | 66dB ~ 22dB (100Hz ~ 100kHz) |
| Supplier Device Package | 8-SON (3x3) |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.5V @ 500mA |
TPS73533DRBR Datasheet dosyasına ulaşmak için tıklayınız.
