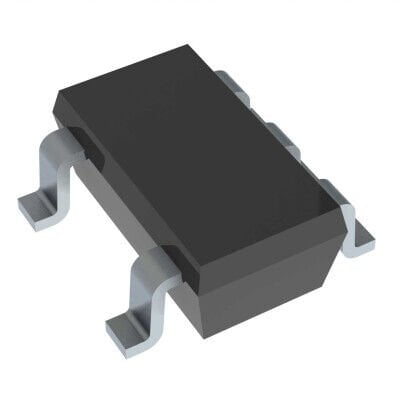

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
Texas Instruments TPS72325DBVR -2.5V 200mA SOT-23-5 Entegre Devre
TPS72325DBVR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments TPS72325DBVR -2.5V 200mA SOT-23-5 Entegre Devre Hakkında
TPS72325DBVR, Texas Instruments üretimi sabit -2.5V çıkışlı negatif lineer regülatördür ve 200mA çıkış akımı sağlar. Enable kontrol girişine sahiptir, aşırı akım/aşırı sıcaklık/kısa devre korumaları bulunur. SOT-23-5 (SC-74A/SOT-753) SMD pakettedir ve -40°C ile 125°C aralığında çalışır.
TPS72325DBVR IC REG LIN -2.5V 200MA SOT23-5
| Ürün Kodu | TPS72325DBVR |
| Control Features | Enable |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 200 µA |
| Current - Supply (Max) | 500 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Negative |
| Output Type | Fixed |
| Package / Case | SC-74A, SOT-753 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| PSRR | 65dB ~ 48dB (1kHz ~ 10kHz) |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) | -10V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | -2.5V |
| Voltage Dropout (Max) | 0.5V @ 200mA |
TPS72325DBVR Datasheet dosyasına ulaşmak için tıklayınız.
