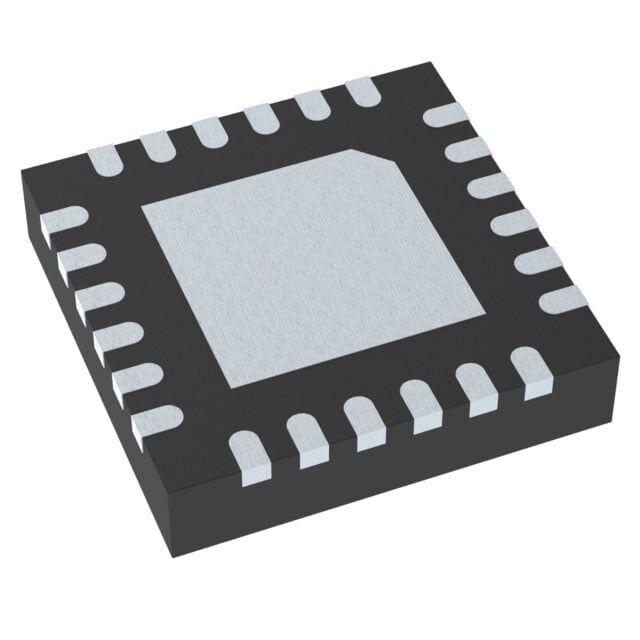

Texas Instruments TPS65131RGER 24-VQFN (4x4) Entegre Devre
283,47 TL
29,66 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS65131RGER
Stok Adedi
0
Fiyat
5,26 USD + KDV
TPS65131RGER, 2.7V-5.5V giriş aralığında çalışan, ayarlanabilir çift çıkışlı (pozitif ve negatif) boost ve buck-boost regülatör entegresidir. 15V ve -15V’a kadar çıkış sağlayabilir, anahtarlama frekansı 1.38MHz ve anahtarlama akımı 1.8A’dır. 24-VFQFN exposed pad (24-VQFN 4x4) SMD kılıftadır ve -40°C ile 85°C aralığında çalışır.
TPS65131RGER IC REG BUCK BST ADJ DL 24VQFN
| Ürün Kodu | TPS65131RGER |
| Current - Output | 1.8A (Switch) |
| Frequency - Switching | 1.38MHz |
| Function | Step-Up, Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive and Negative (Dual Rail) |
| Output Type | Adjustable |
| Package / Case | 24-VFQFN Exposed Pad |
| Part Status | Active |
| Supplier Device Package | 24-VQFN (4x4) |
| Synchronous Rectifier | No |
| Topology | Boost, Buck-Boost |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Max) | 15V, -15V |
| Voltage - Output (Min/Fixed) | 3.2V, -2V |
TPS65131RGER Datasheet dosyasına ulaşmak için tıklayınız.
