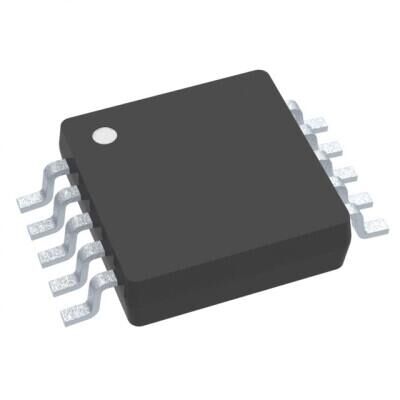

Texas Instruments LM5022MM/NOPB 10-VSSOP Boost/SEPIC Kontrolcü Entegre Devre
497,47 TL
52,04 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM5022MM/NOPB
Stok Adedi
1
Fiyat
9,27 USD + KDV
LM5022MM/NOPB, Boost ve SEPIC topolojileri için 1 çıkışlı anahtarlamalı regülatör kontrolcü entegresidir. 6V-60V besleme aralığında çalışır, 200kHz-990kHz anahtarlama frekansı ve %95 maksimum duty cycle sunar. 10-VSSOP (SMD) pakettedir; frekans kontrolü, soft-start ve clock senkronizasyonu destekler.
LM5022MM/NOPB IC REG CTRLR BOOST/SEPIC 10MSOP
| Ürün Kodu | LM5022MM/NOPB |
| Clock Sync | Yes |
| Control Features | Frequency Control, Soft Start |
| Duty Cycle (Max) | 95% |
| Frequency - Switching | 200kHz ~ 990kHz |
| Function | Step-Up, Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Part Status | Active |
| Serial Interfaces | - |
| Supplier Device Package | 10-VSSOP |
| Synchronous Rectifier | No |
| Topology | Boost, SEPIC |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 60V |
LM5022MM/NOPB Datasheet dosyasına ulaşmak için tıklayınız.
