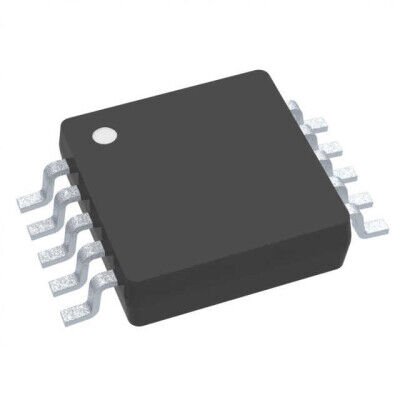

Texas Instruments LM5020MM-1/NOPB 10-VSSOP Entegre Devre
236,57 TL
24,75 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM5020MM-1/NOPB
Stok Adedi
1
Fiyat
4,42 USD + KDV
LM5020MM-1/NOPB, flyback topolojisi için step-up/step-down regülatör kontrol entegresidir. 200kHz–630kHz anahtarlama frekansı aralığı, frekans kontrolü ve soft-start özellikleri sunar; clock senkronizasyonu destekler. 8V–15V besleme aralığında çalışır ve -40°C ile 125°C (TJ) sıcaklık aralığına uygundur.
LM5020MM-1/NOPB IC REG CTRLR FLYBACK 10MSOP
| Ürün Kodu | LM5020MM-1/NOPB |
| Clock Sync | Yes |
| Control Features | Frequency Control, Soft Start |
| Duty Cycle (Max) | 80% |
| Frequency - Switching | 200kHz ~ 630kHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Part Status | Active |
| Serial Interfaces | - |
| Supplier Device Package | 10-VSSOP |
| Synchronous Rectifier | No |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
