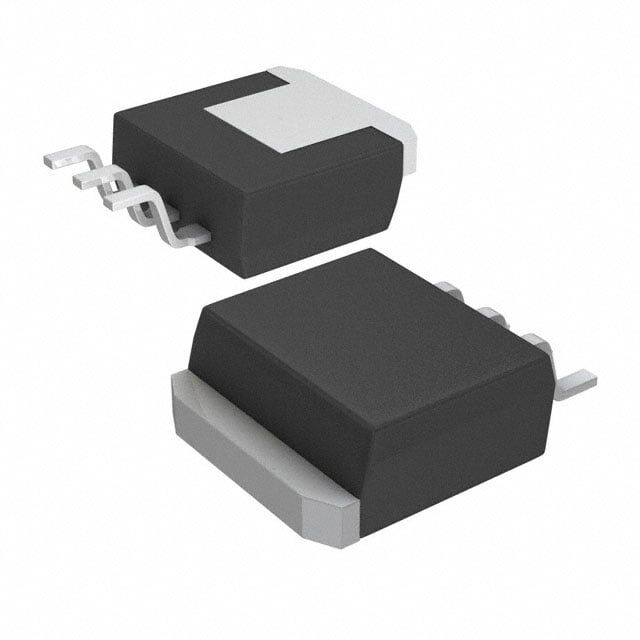

Texas Instruments LM2940SX-10/NOPB DDPAK/TO-263-3 10V 1A Entegre Devre
174,39 TL
18,24 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM2940SX-10/NOPB
Stok Adedi
1
Fiyat
3,25 USD + KDV
LM2940SX-10/NOPB, Texas Instruments üretimi 10V sabit çıkışlı, 1A pozitif lineer regülatördür. Maksimum 26V giriş gerilimi ile çalışır ve DDPAK/TO-263-3 SMD kılıfta sunulur. Aşırı akım, aşırı sıcaklık, ters polarite ve kısa devre korumaları içerir.
LM2940SX-10/NOPB IC REG LIN 10V 1A DDPAK/TO263-3
| Ürün Kodu | LM2940SX-10/NOPB |
| Control Features | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | 15 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| PSRR | 63dB (120Hz) |
| Supplier Device Package | DDPAK/TO-263-3 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 10V |
| Voltage Dropout (Max) | 1V @ 1A |
LM2940SX-10/NOPB Datasheet dosyasına ulaşmak için tıklayınız.
