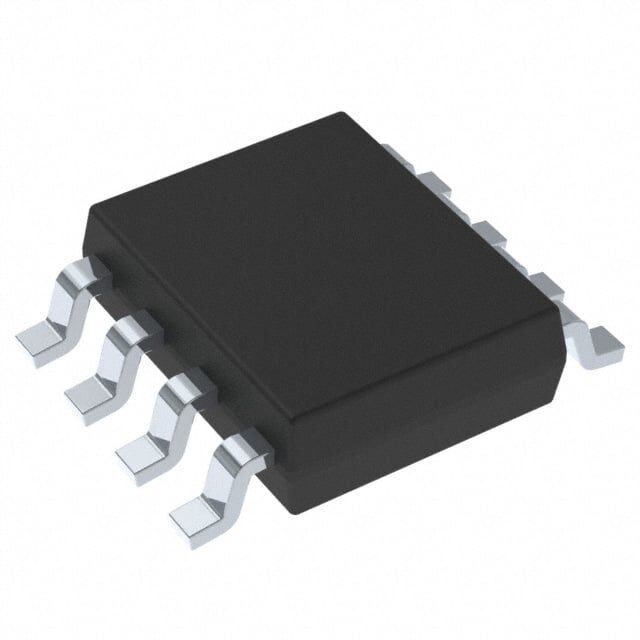

Texas Instruments DRV8870DDAR 3.6A PWM Motor Sürücü Entegre Devre
168,57 TL
17,63 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
DRV8870DDAR
Stok Adedi
0
Fiyat
3,13 USD + KDV
Texas Instruments DRV8870DDAR, PWM arayüzlü, tam entegre kontrol ve güç katına sahip motor sürücü entegresidir. 6.5V-45V yük gerilimi aralığında 3.6A çıkış akımına kadar fırçalı DC motorlar ve unipolar step motor uygulamalarında kullanılabilir. 8-SO PowerPad SMD pakettedir ve çalışma sıcaklığı -40°C ile 150°C (TJ) aralığındadır.
DRV8870DDAR IC MOTOR DRVR UNIPLR 8SO PWRPAD
| Ürün Kodu | DRV8870DDAR |
| Applications | DC Motors, General Purpose, Stepper Motors |
| Current - Output | 3.6A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Unipolar |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Part Status | Active |
| Step Resolution | - |
| Supplier Device Package | 8-SO PowerPad |
| Technology | NMOS |
| Voltage - Load | 6.5V ~ 45V |
| Voltage - Supply | 0V ~ 5.5V |
DRV8870DDAR Datasheet dosyasına ulaşmak için tıklayınız.
