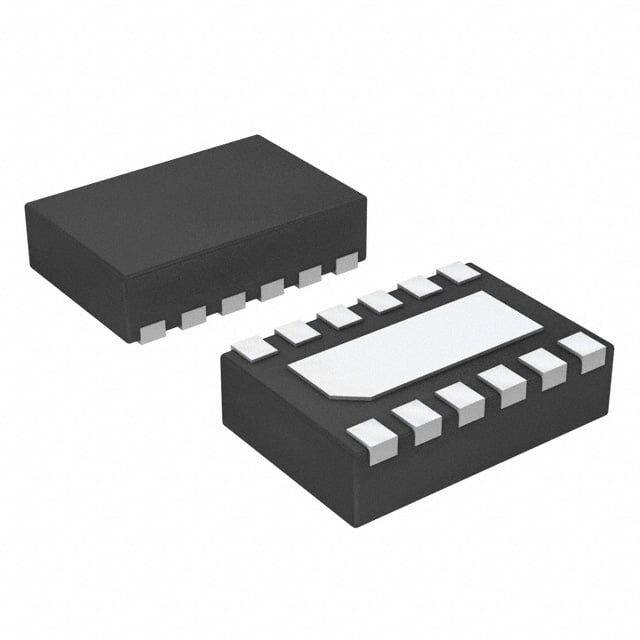

Texas Instruments DRV8839DSSR Motor Sürücü 12-WSON Entegre Devre
DRV8839DSSR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments DRV8839DSSR Motor Sürücü 12-WSON Entegre Devre Hakkında
Texas Instruments DRV8839DSSR, fırçalı DC ve bipolar step motorlar için tam entegre motor sürücü entegresidir. 1.8V–7V besleme aralığında çalışır, yük gerilimi 0V–11V ve çıkış akımı 1.8A seviyesindedir. 12-WSON (2x3) SMD pakette, iki adet half-bridge çıkış sunar ve -40°C ile 150°C (TJ) aralığında çalışır.
DRV8839DSSR IC MTR DRVR BIPOLR 1.8-7V 12WSON
| Ürün Kodu | DRV8839DSSR |
| Applications | Battery Powered |
| Current - Output | 1.8A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Parallel |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Package / Case | 12-WFDFN Exposed Pad |
| Part Status | Active |
| Step Resolution | - |
| Supplier Device Package | 12-WSON (2x3) |
| Technology | Power MOSFET |
| Voltage - Load | 0V ~ 11V |
| Voltage - Supply | 1.8V ~ 7V |
DRV8839DSSR Datasheet dosyasına ulaşmak için tıklayınız.
