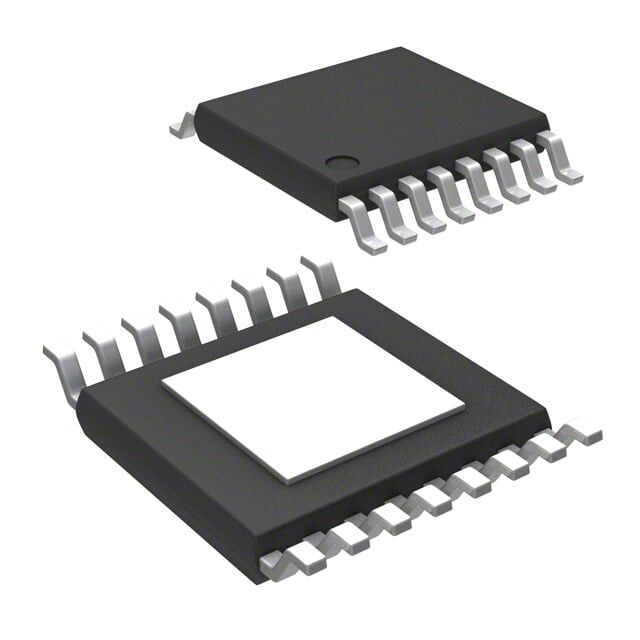

Texas Instruments DRV8833CPWPR Motor Sürücü Entegre Devre
171,49 TL
17,94 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
DRV8833CPWPR
Stok Adedi
1
Fiyat
3,18 USD + KDV
Texas Instruments DRV8833CPWPR, PWM arayüzlü, tam entegre kontrol ve güç katına sahip motor sürücü entegresidir. Fırçalı DC motorlar, bipolar step motorlar ve solenoid uygulamalarında kullanılabilir; 2.7V–10.8V besleme aralığında çalışır ve 700mA çıkış akımı sunar. SMD montaj için 16-HTSSOP pakettedir ve -40°C ile 150°C çalışma sıcaklığı aralığını destekler.
DRV8833CPWPR IC MOTOR DRIVER PAR
| Ürün Kodu | DRV8833CPWPR |
| Applications | DC Motors, General Purpose, Solenoids |
| Current - Output | 700mA |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Part Status | Active |
| Step Resolution | - |
| Supplier Device Package | 16-HTSSOP |
| Technology | Power MOSFET |
| Voltage - Load | 2.7V ~ 10.8V |
| Voltage - Supply | 2.7V ~ 10.8V |
DRV8833CPWPR Datasheet dosyasına ulaşmak için tıklayınız.
