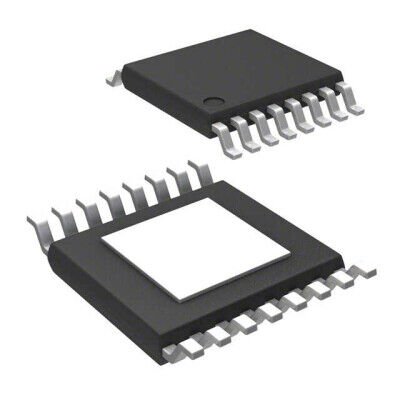

Texas Instruments DRV8806PWP Motor Sürücü Entegre Devre
319,49 TL
33,42 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
DRV8806PWP
Stok Adedi
1
Fiyat
5,93 USD + KDV
Texas Instruments DRV8806PWP, SPI arayüzlü, güç MOSFET tabanlı tam entegre motor sürücü entegresidir. 8.2V–40V besleme aralığında çalışır ve 2A çıkış akımı sunar; unipolar step motor ve fırçalı DC motor uygulamalarına uygundur. 16-HTSSOP (PowerTSSOP) SMD kılıftadır ve -40°C ile 150°C çalışma sıcaklığı aralığını destekler.
DRV8806PWP 16-PowerTSSOP (0.173", 4.40mm Width) kılıfta üretilmiştir. Unipolar Motor Driver Power MOSFET SPI 16-HTSSOP
| Ürün Kodu | DRV8806PWP |
| Packaging | Tube |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2A |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side (4) |
| Voltage - Supply | 8.2V ~ 40V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 8.2V ~ 40V |
| Supplier Device Package | 16-HTSSOP |
| Motor Type - Stepper | Unipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
DRV8806PWP Datasheet dosyasına ulaşmak için tıklayınız.
