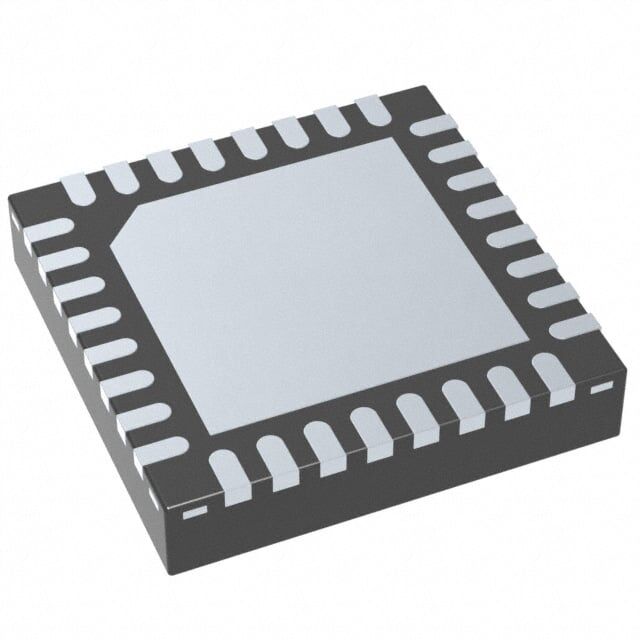

Texas Instruments DRV8706HQRHBRQ1 Motor Sürücü Entegre Devre
DRV8706HQRHBRQ1
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments DRV8706HQRHBRQ1 Motor Sürücü Entegre Devre Hakkında
DRV8706HQRHBRQ1, Texas Instruments tarafından üretilen otomotiv uyumlu 40V H-köprü motor sürücü entegresidir. PWM arayüzü ile fırçalı DC motorlar ve bipolar step motor uygulamalarında kullanılabilir. 4.9V–37V besleme aralığında çalışır ve 32-VQFN (5x5) SMD pakettedir.
DRV8706HQRHBRQ1 AUTOMOTIVE 40-V H-BRIDGE SMART G
| Ürün Kodu | DRV8706HQRHBRQ1 |
| Applications | Automotive, Brushed DC |
| Current - Output | 5mA |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Package / Case | 32-VFQFN Exposed Pad |
| Part Status | Active |
| Step Resolution | - |
| Supplier Device Package | 32-VQFN (5x5) |
| Technology | NMOS |
| Voltage - Load | - |
| Voltage - Supply | 4.9V ~ 37V |
DRV8706HQRHBRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
