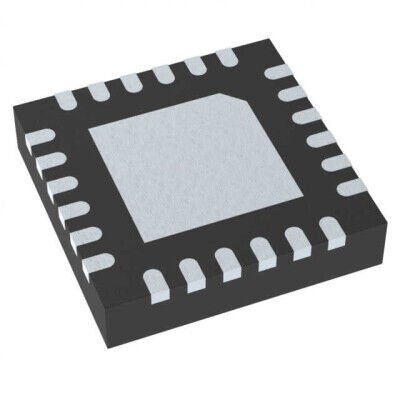

Texas Instruments DRV8701ERGER Motor Sürücü Entegre Devre
DRV8701ERGER
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments DRV8701ERGER Motor Sürücü Entegre Devre Hakkında
Texas Instruments DRV8701ERGER, fırçalı DC motorlar için akım yönetimli kontrolcü tipinde motor sürücü entegresidir. 5.9V–45V yük gerilimi aralığını ve 0V–5.5V besleme gerilimini destekler, paralel arayüz ile çalışır. 24-VQFN (4x4) SMD pakette, -40°C ile 125°C çalışma sıcaklığı aralığına sahiptir.
DRV8701ERGER IC MOTOR DRIVER 0V-5.5V 24VQFN
| Ürün Kodu | DRV8701ERGER |
| Applications | General Purpose |
| Current - Output | - |
| Function | Controller - Current Management |
| Interface | Parallel |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (2) |
| Package / Case | 24-VFQFN Exposed Pad |
| Part Status | Active |
| Step Resolution | - |
| Supplier Device Package | 24-VQFN (4x4) |
| Technology | Power MOSFET |
| Voltage - Load | 5.9V ~ 45V |
| Voltage - Supply | 0V ~ 5.5V |
DRV8701ERGER Datasheet dosyasına ulaşmak için tıklayınız.
