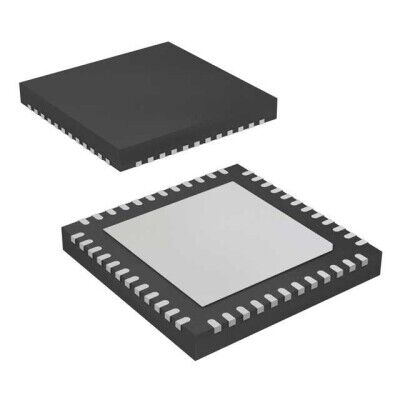

Texas Instruments DRV8353RSRGZR BLDC Motor Sürücü Entegre Devre
DRV8353RSRGZR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments DRV8353RSRGZR BLDC Motor Sürücü Entegre Devre Hakkında
DRV8353RSRGZR, Texas Instruments tarafından üretilen çok fazlı BLDC motor sürücü kontrol entegresidir ve SPI arayüzü ile kontrol edilir. 6V-95V besleme aralığında çalışır, 9V-75V yük gerilimini destekler ve 3 adet yarım köprü çıkış konfigürasyonuna sahiptir. SMD montaj için 48-VQFN (7x7 mm) pakettedir ve çalışma sıcaklığı -40°C ile 125°C arasındadır.
DRV8353RSRGZR IC MTR DRV MULTIPHAS 6-95V 48QFN
| Ürün Kodu | DRV8353RSRGZR |
| Applications | Brushless DC (BLDC) |
| Current - Output | 25mA |
| Function | Controller - Commutation, Direction Management |
| Interface | SPI |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Motor Type - Stepper | Multiphase |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (3) |
| Package / Case | 48-VFQFN Exposed Pad |
| Part Status | Active |
| Step Resolution | - |
| Supplier Device Package | 48-VQFN (7x7) |
| Technology | Power MOSFET |
| Voltage - Load | 9V ~ 75V |
| Voltage - Supply | 6V ~ 95V |
DRV8353RSRGZR Datasheet dosyasına ulaşmak için tıklayınız.
