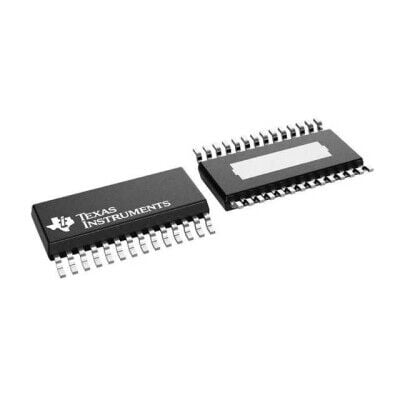

Texas Instruments DRV8244HQDGQRQ1 Motor Sürücü Entegre Devre
DRV8244HQDGQRQ1
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments DRV8244HQDGQRQ1 Motor Sürücü Entegre Devre Hakkında
Texas Instruments DRV8244HQDGQRQ1, fırçalı DC motorlar için tam entegre kontrol ve güç katı içeren Bi-CMOS motor sürücü entegresidir. 2 adet half-bridge çıkış yapısına sahiptir, 4.5V-35V yük gerilimi aralığında çalışır ve 21A çıkış akımı destekler. 28-HTSSOP (PowerTSSOP, 3.00mm) SMD pakettedir ve AEC-Q100 otomotiv sınıfı için uygundur.
DRV8244HQDGQRQ1 28-PowerTSSOP (0.118", 3.00mm Width) kılıfta üretilmiştir. Bipolar Motor Driver Bi-CMOS Hardwired (HW) 28-HTSSOP
| Ürün Kodu | DRV8244HQDGQRQ1 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Hardwired (HW) |
| Technology | Bi-CMOS |
| Step Resolution | - |
| Applications | Brushed DC |
| Current - Output | 21A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 35V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 28-HTSSOP |
DRV8244HQDGQRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
