Texas Instruments DRV8243HQDGQRQ1 Motor Sürücü Entegre Devre
360,32 TL
37,70 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
DRV8243HQDGQRQ1
Stok Adedi
1
Fiyat
6,81 USD + KDV
DRV8243HQDGQRQ1, SPI arayüzlü, tam entegre kontrol ve güç katına sahip motor sürücü entegresidir. 4.5V–35V besleme aralığında çalışır ve 12A çıkış akımı sunar; bipolar step motor ve fırçalı DC motor uygulamalarına uygundur. 28-HTSSOP (PowerTSSOP) SMD pakettedir, otomotiv sınıfı AEC-Q100 kalifikasyonludur.

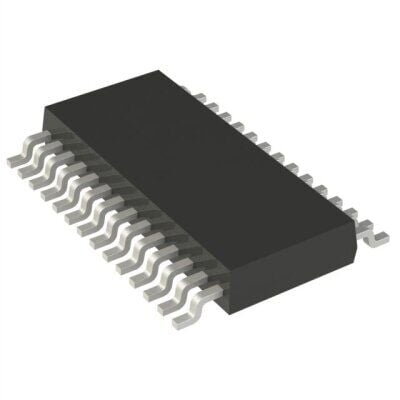

DRV8243HQDGQRQ1 28-PowerTSSOP (0.118", 3.00mm Width) kılıfta üretilmiştir. Bipolar Motor Driver Bi-CMOS SPI 28-HTSSOP
| Ürün Kodu | DRV8243HQDGQRQ1 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-PowerTSSOP (0.118", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 12A |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 35V |
| Applications | - |
| Technology | Bi-CMOS |
| Voltage - Load | 4.5V ~ 35V |
| Supplier Device Package | 28-HTSSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
DRV8243HQDGQRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
