Görseller temsilidir, tam özellikler için datasheet'e bakınız.

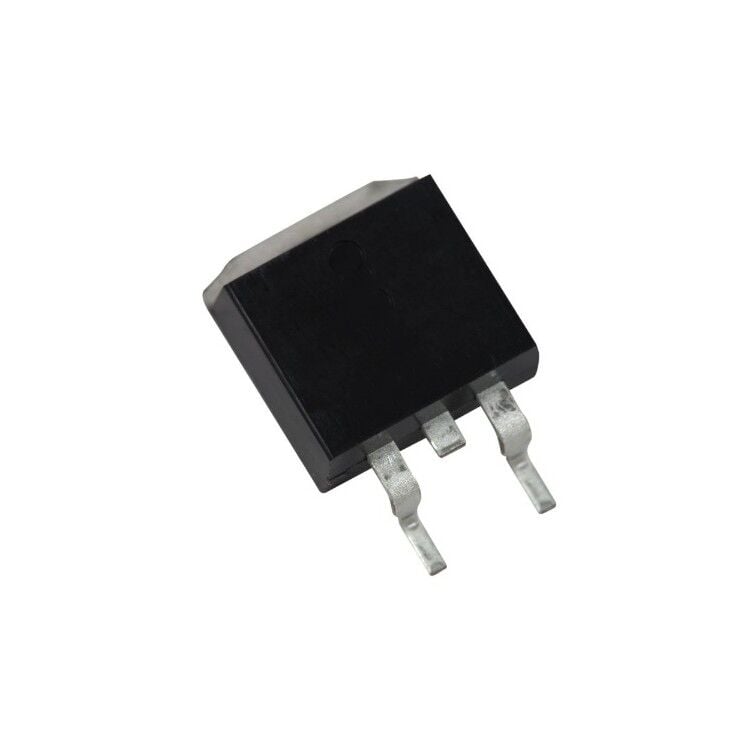

STTH20R04G (STTH20R04) 400V 20A TO263-3 (D2PAK-3) Diyot
STTH20R04G
- Üretici
- STMicroelectronics
- Kategori
- Kılıf / Paket
- —
STTH20R04G (STTH20R04) 400V 20A TO263-3 (D2PAK-3) Diyot Hakkında
STTH20R04G (STTH20R04) 400V 20A TO263-3 (D2PAK-3) Diyot
| Kılıf | TO-263-3 D²Pak (2 Leads + Tab) TO-263AB |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | D2PAK |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 20 µA @ 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 20 A |
| Reverse Recovery Time (trr) | 45 ns |
| Current - Average Rectified (Io) | 20A |
| Diode Type | Standard |
| Operating Temperature - Junction | 175°C (Max) |
| Capacitance @ Vr- F | - |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
