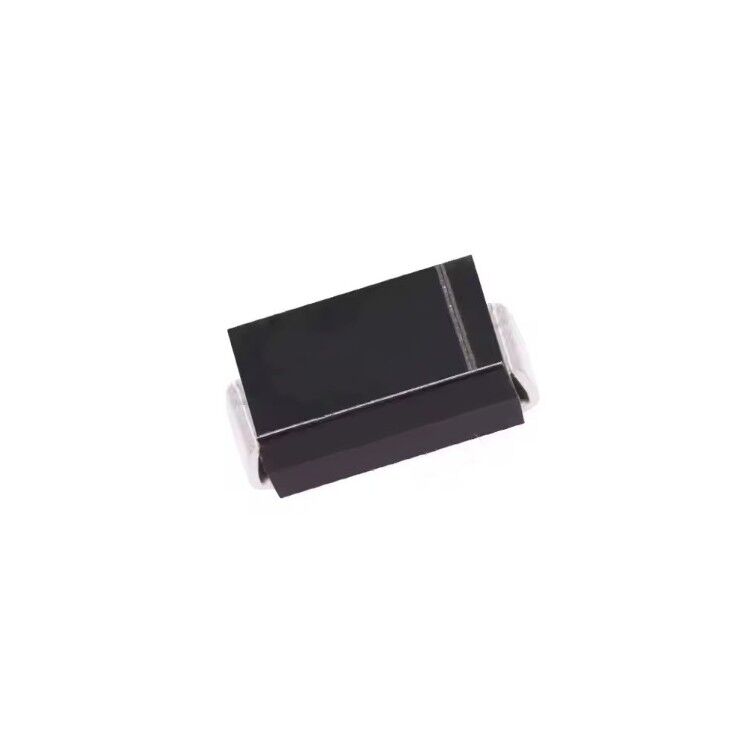

S1G-E3/5AT 400V 1A DO214AC (SMA) Diyot
1,59 TL
0,17 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
S1G-E3/5AT 400V 1A DO214AC (SMA) Diyot
| Kılıf | DO-214AC SMA |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | DO-214AC (SMA) |
| Hız | Standard Recovery -500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Reverse Recovery Time (trr) | 1.8 µs |
| Current - Average Rectified (Io) | 1A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Capacitance @ Vr- F | 12pF @ 4V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
