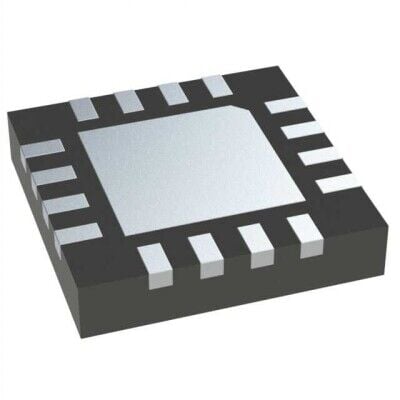

Renesas ISL1571IRZ-T7 2 Kanallı Diferansiyel Amplifikatör Entegre Devre
319,31 TL
33,40 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
ISL1571IRZ-T7
Stok Adedi
0
Fiyat
6,04 USD + KDV
Renesas ISL1571IRZ-T7, 2 devreli standart (genel amaçlı) diferansiyel çıkışlı amplifikatör entegresidir. 250 MHz -3 dB bant genişliği ve 1200 V/µs slew rate değerine sahiptir; 4.5 V ile 12 V besleme aralığında çalışır. 16-QFN (4x4) / 16-TFQFN exposed pad SMD kılıftadır ve -40°C ile 85°C arasında kullanılabilir.
ISL1571IRZ-T7 16-TFQFN Exposed Pad kılıfta üretilmiştir. Standard (General Purpose) Amplifier 2 Circuit Differential 16-QFN (4x4)
| Ürün Kodu | ISL1571IRZ-T7 |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Differential |
| Slew Rate | 1200V/µs |
| -3db Bandwidth | 250 MHz |
| Current - Input Bias | 7 µA |
| Voltage - Input Offset | 40 mV |
| Current - Supply | 15mA (x2 Channels) |
| Current - Output / Channel | 1 A |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
ISL1571IRZ-T7 Datasheet dosyasına ulaşmak için tıklayınız.
