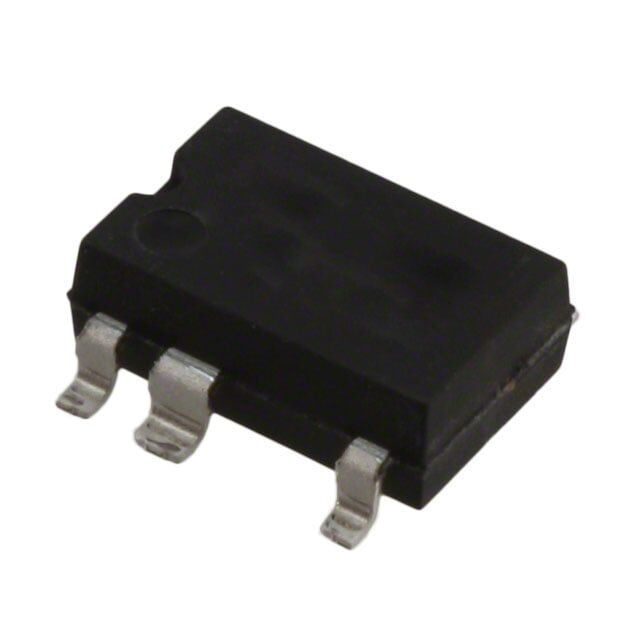

Power Integrations LNK3696G-TL SMD-8C Entegre Devre
LNK3696G-TL
- Üretici
- Power Integrations
- Kategori
- Kılıf / Paket
- —
Power Integrations LNK3696G-TL SMD-8C Entegre Devre Hakkında
LNK3696G-TL, flyback topolojisi için offline anahtarlama entegresidir ve dahili anahtar içerir. 900V breakdown gerilimi, 11W güç ve 66kHz anahtarlama frekansı ile yüzey montaj 8-SMD (7 bacak) Gull Wing pakettedir. Akım sınırlama, aşırı sıcaklık ve aşırı gerilim korumaları bulunur.
LNK3696G-TL IC OFFLINE SWITCH FLYBACK 8SMD
| Ürün Kodu | LNK3696G-TL |
| Control Features | - |
| Duty Cycle | 65% |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Isolation | Isolated |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Part Status | Active |
| Power (Watts) | 11 W |
| Supplier Device Package | SMD-8C |
| Topology | Flyback |
| Voltage - Breakdown | 900V |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
LNK3696G-TL Datasheet dosyasına ulaşmak için tıklayınız.
