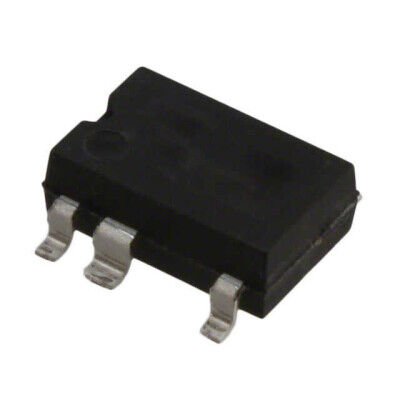

Power Integrations LNK3296G-TL SMD-8C Entegre Devre
90,48 TL
9,47 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LNK3296G-TL
Stok Adedi
1
Fiyat
1,68 USD + KDV
LNK3296G-TL, Power Integrations üretimi offline anahtarlama entegresidir ve dahili anahtar içerir. 66kHz anahtarlama frekansı, 900V breakdown gerilimi ve EN/Soft Start kontrol özelliklerine sahiptir. SMD montaja uygundur; Buck, Buck-Boost ve Flyback topolojilerini destekler.
LNK3296G-TL IC OFFLINE SWITCH MULT TOP 8SMD
| Ürün Kodu | LNK3296G-TL |
| Control Features | EN, Soft Start |
| Duty Cycle | 68% |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Isolation | Non-Isolated |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Part Status | Active |
| Power (Watts) | - |
| Supplier Device Package | SMD-8C |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Breakdown | 900V |
| Voltage - Start Up | 470 mV |
| Voltage - Supply (Vcc/Vdd) | - |
LNK3296G-TL Datasheet dosyasına ulaşmak için tıklayınız.
