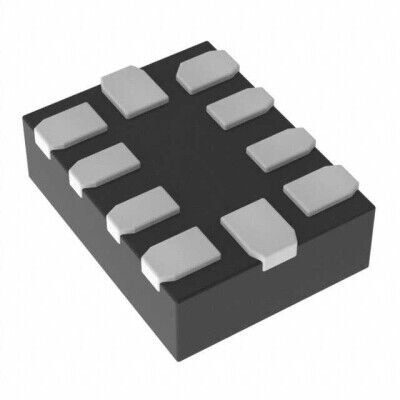

PI3USB221EQ1ZUAEX 10-UFQFN USB Switch Entegre Devre
56,30 TL
5,89 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
PI3USB221EQ1ZUAEX
Stok Adedi
0
Fiyat
1,05 USD + KDV
Diodes Incorporated PI3USB221EQ1ZUAEX, 10-UFQFN (1.5x2) kılıfta 2 kanallı, çift yönlü USB 2.0 switch entegresidir. 2.3V–3.6V besleme aralığında çalışır, 7Ω maks. iletim direnci ve 1.6GHz -3dB bant genişliği sunar. -40°C ile 125°C aralığında çalışır ve AEC-Q100 otomotiv sınıfı uygundur.
PI3USB221EQ1ZUAEX 10-UFQFN kılıfta üretilmiştir. USB Switch IC 2 Channel 10-UQFN (1.5x2)
| Ürün Kodu | PI3USB221EQ1ZUAEX |
| Packaging | Cut Tape (CT) |
| Features | Bi-Directional, USB 2.0 |
| Package / Case | 10-UFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | USB |
| On-State Resistance (Max) | 7Ohm |
| -3db Bandwidth | 1.6GHz |
| Supplier Device Package | 10-UQFN (1.5x2) |
| Voltage - Supply, Single (V+) | 2.3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | DPST |
| Multiplexer/Demultiplexer Circuit | 1:2 |
| Grade | Automotive |
| Number of Channels | 2 |
| Qualification | AEC-Q100 |
PI3USB221EQ1ZUAEX Datasheet dosyasına ulaşmak için tıklayınız.
