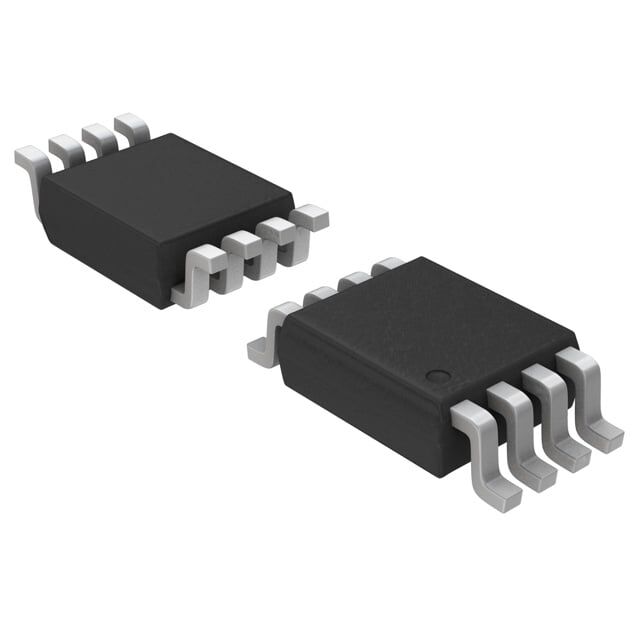

onsemi NLV27WZ08USG US8 2x 2 Girişli AND Kapısı Entegre Devre
104,71 TL
10,95 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
NLV27WZ08USG, onsemi üretimi 2 devreli, her devresi 2 girişli AND kapısı entegre devredir. 1.65V–5.5V besleme aralığında çalışır, 5V/50pF koşulunda tipik 3.7ns yayılma gecikmesine sahiptir. SMD montaja uygundur ve US8 kılıfta sunulur.
NLV27WZ08USG IC GATE AND 2CH 2-INP US8
| Ürün Kodu | NLV27WZ08USG |
| Current - Output High, Low | 32mA, 32mA |
| Current - Quiescent (Max) | 1 µA |
| Features | - |
| Logic Level - High | - |
| Logic Level - Low | - |
| Logic Type | AND Gate |
| Max Propagation Delay @ V, Max CL | 3.7ns @ 5V, 50pF |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Operating Temperature | -55°C ~ 125°C |
| Part Status | Active |
| Supplier Device Package | US8 |
| Voltage - Supply | 1.65V ~ 5.5V |
NLV27WZ08USG Datasheet dosyasına ulaşmak için tıklayınız.
