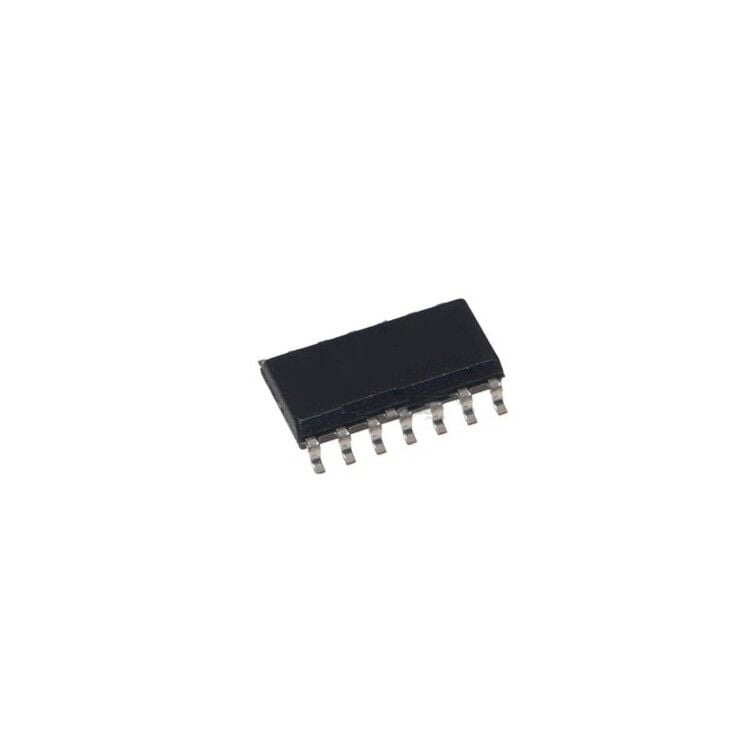

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
MC74ACT132DR2 (ACT132G) SOIC-14 Entegre Devre Hakkında
MC74ACT132DR2 (ACT132G) SOIC-14 GATE NAND 4CH 2-INP 14-SO Entegre Devre
| Montaj Tipi | Surface Mount ( SMD ) |
|---|---|
| Voltage - Supply | 4.5V ~ 5.5V |
| Çalışma Sıcaklığı | -40°C ~ 85°C |
| Üretici Paket/Kılıf | 14-SOIC |
| Features | Schmitt Trigger |
| Number of Circuits | 4 |
| Logic Type | NAND Gate |
| Number of Inputs | 2 |
| Current - Quiescent (Max) | 4 µA |
| Logic Level - High | 2V |
| Logic Level - Low | 0.8V |
| Product Category | Logic - Gates and Inverters |
| Low | 24mA |
| 50pF | 1 |
| 24mA | 1 |
| Max CL | 11.5ns @ 5V |
