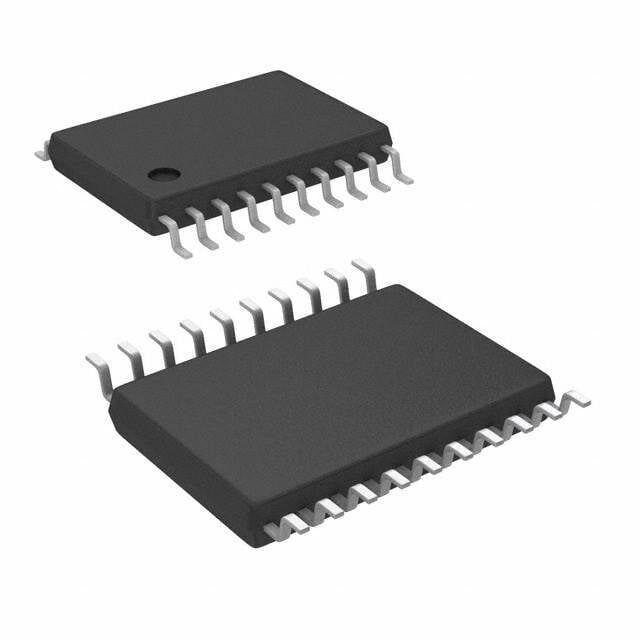

onsemi MC74HC273ADTR2G 8-Bit D Flip-Flop 20-TSSOP Entegre Devre
43,76 TL
4,58 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
MC74HC273ADTR2G, onsemi üretimi 8-bit D tipi flip-flop entegresidir ve pozitif kenar tetiklemeli çalışır. 2V–6V besleme aralığını destekler, reset fonksiyonuna sahiptir ve 20-TSSOP SMD kılıfta sunulur. Çalışma sıcaklık aralığı -55°C ile 125°C arasındadır.
MC74HC273ADTR2G IC FF D-TYPE SNGL 8BIT 20TSSOP
| Ürün Kodu | MC74HC273ADTR2G |
| Clock Frequency | 35 MHz |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Current - Quiescent (Iq) | 4 µA |
| Function | Reset |
| Input Capacitance | 10 pF |
| Max Propagation Delay @ V, Max CL | 25ns @ 6V, 50pF |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Output Type | Non-Inverted |
| Part Status | Active |
| Supplier Device Package | 20-TSSOP |
| Trigger Type | Positive Edge |
| Type | D-Type |
| Voltage - Supply | 2V ~ 6V |
MC74HC273ADTR2G Datasheet dosyasına ulaşmak için tıklayınız.
