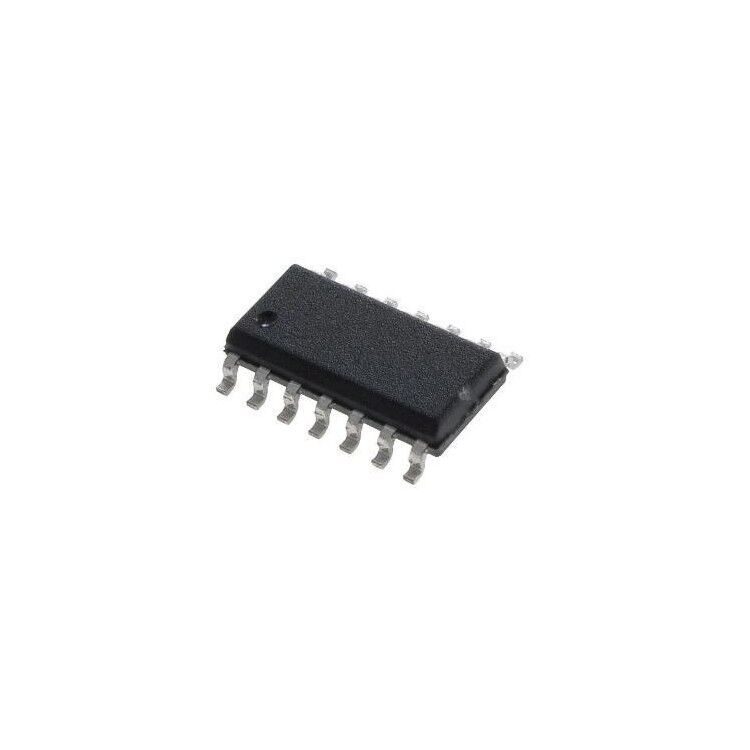

MC33204D, SO-14 Entegre Devre
88,16 TL
9,22 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
MC33204D, MC33204, Low Voltage, Rail-to-Rail Operational Amplifier OpAmp Quad 2-12V Entegre SO-14 Kılıf Entegre
| Montaj Tipi | Surface Mount ( SMD ) |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 105°C (TA) |
| Current - Supply | 900µA (x4 Channels) |
| Çıkış Tipi | Rail-to-Rail |
| SR - Slew Rate | 1V/µs |
| Current - Input Bias | 80 nA |
| Current - Output / Channel | 80 mA |
| Gain Bandwidth Product | 2.2 MHz |
| Number of Circuits | 4 |
| Voltage - Input Offset | 10 mV |
| Voltage - Supply Span (Max) | 12 V |
| Voltage - Supply Span (Min) | 1.8 V |
| Amplifikatör Tipi | General Purpose |
| Catalog | Linear - Amplifiers - Instrumentation- OP Amps- Buffer Amps |
