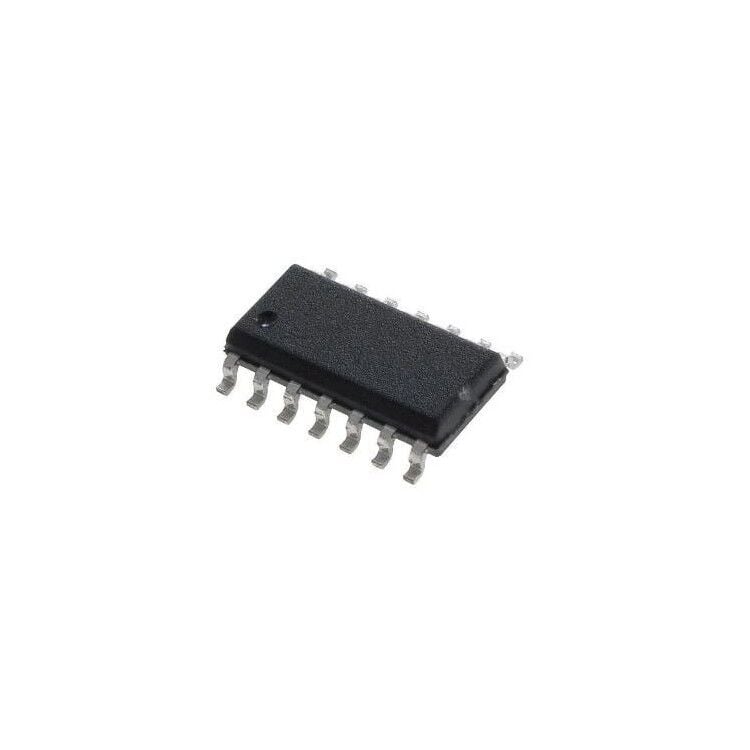

MC33174DR2, SO-14 Entegre Devre
50,55 TL
5,29 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
MC33174DR2, MC33174, Low Power Operational Amplifier OpAmp Quad 3-44V Entegre SO-14 Kılıf Entegre
| Montaj Tipi | Surface Mount ( SMD ) |
|---|---|
| Çalışma Sıcaklığı | -40°C ~ 85°C |
| Current - Supply | 180µA (x4 Channels) |
| SR - Slew Rate | 2.1V/µs |
| Current - Input Bias | 20 nA |
| Current - Output / Channel | 27 mA |
| Gain Bandwidth Product | 1.8 MHz |
| Number of Circuits | 4 |
| Voltage - Input Offset | 2 mV |
| Voltage - Supply Span (Max) | 44 V |
| Voltage - Supply Span (Min) | 3 V |
| Amplifikatör Tipi | General Purpose |
| Catalog | Linear - Amplifiers - Instrumentation- OP Amps- Buffer Amps |
