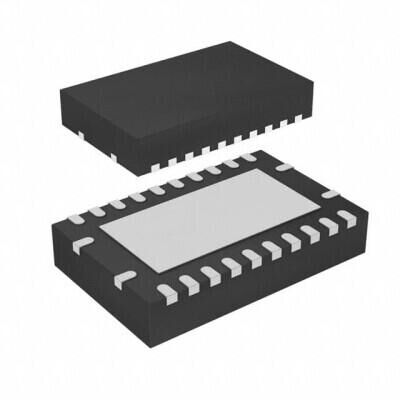

LM25148RGYR Texas Instruments 24-VQFN (5.5x3.5) Entegre Devre
235,00 TL
24,59 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM25148RGYR
Stok Adedi
1
Fiyat
4,37 USD + KDV
LM25148RGYR, Texas Instruments üretimi 42V’a kadar giriş destekleyen senkron buck (step-down) DC/DC kontrol entegresidir. 100kHz–2.2MHz anahtarlama frekansı aralığında çalışır ve harici saat senkronizasyonunu destekler. Akım limiti, power good, ramp ve soft start gibi kontrol özellikleri bulunur; çalışma sıcaklığı -40°C ile 125°C arasındadır.
LM25148RGYR 42-V SYNCHRONOUS BUCK DC/DC CONT
| Ürün Kodu | LM25148RGYR |
| Clock Sync | Yes |
| Control Features | Current Limit, Power Good, Ramp, Soft Start |
| Duty Cycle (Max) | 100% |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 24-VFQFN Exposed Pad |
| Part Status | Active |
| Serial Interfaces | - |
| Supplier Device Package | 24-VQFN (5.5x3.5) |
| Synchronous Rectifier | Yes |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 42V |
LM25148RGYR Datasheet dosyasına ulaşmak için tıklayınız.
