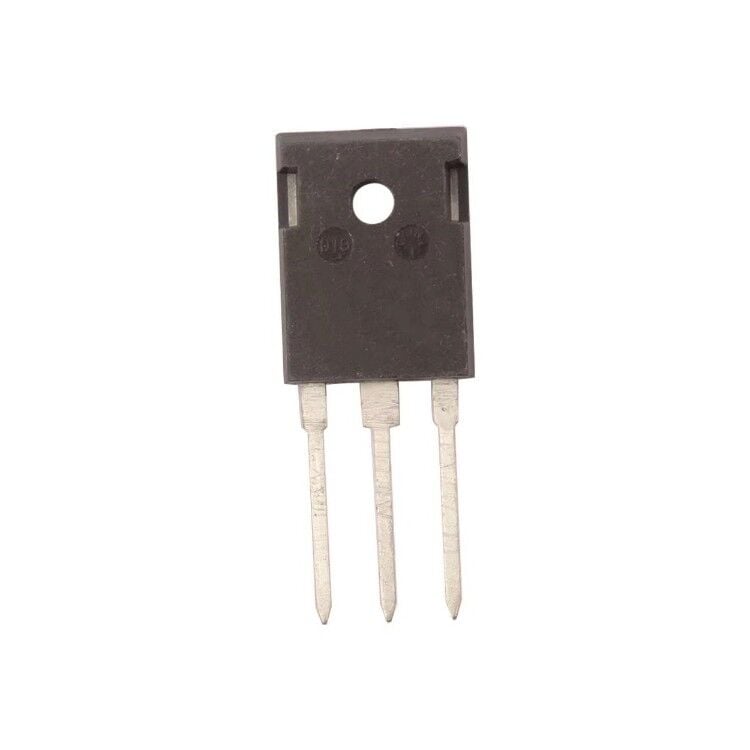

ISL9K3060G3 (K3060G3) 600V 30A TO247-3 Diyot
95,05 TL
9,94 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
ISL9K3060G3 (K3060G3) 600V 30A TO247-3 Diyot
| Kılıf | TO-247-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-247-3 |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 30 A |
| Reverse Recovery Time (trr) | 45 ns |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Diode Configuration | 1 Pair Common Cathode |
